Piston Ring Set for 2010-2014 Ford F-150 & More - Sealed E1004K .50MM

$144.99
WARNING:California Proposition 65▾
Sealed Power Engine Piston Ring Set E-1004K.50MM
Sealed Power Engine Piston Ring Set E-1004K.50MM

Vehicles this part fits
    Part number: E-1004K.50MM
    UPC: 019826225900
    Condition: New
    Weight: 0.80 LBS
    Item Package Quantity: 1
    $144.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert

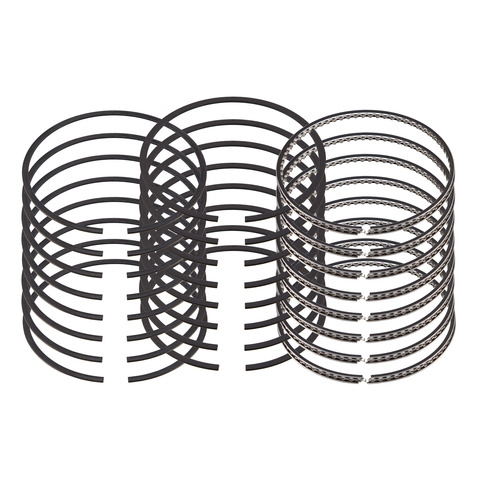

    Sealed Power Engine Piston Ring Set P/N:E1004K .50MM
    Sealed Power Engine Piston Ring Set P/N:E1004K .50MM
    $144.99
    $144.99

    Sealed E1004K .50MM piston ring set for the 2010-2014 Ford F-150 V8 6.2L and other vehicles seals the pistons to the cylinder walls. This engine piston ring set is 0.50 mm oversize and covers eight cylinders with top, second and oil rings.

    • Moly-plasma top ring with a porous surface for oil-carrying capacity, a more effective compression seal and less friction and drag
    • Second rings seat instantly and control inter-ring pressure to improve cylinder sealing
    • Second rings also move heat from the piston to the cylinder and aid oil control
    • 3-piece flex vent oil ring that keeps tension uniform while holding a positive seal

    Quick facts

    • Part: Sealed E1004K .50MM piston ring set
    • Also called: engine piston ring set
    • Fits: 2010-2014 Ford F-150 V8 6.2L and other vehicles
    • Material: Top ring steel with moly; second ring ductile iron with phosphate coating
    • Condition: New

    Heavy oil use, blue exhaust smoke and weak compression can mean worn rings. Oil burning can also start at the valve seals or the crankcase ventilation, so read the dipstick and look for external leaks with the engine off and cool, and leave compression or leak-down testing to a shop.

    Fits

    As a 0.50 mm oversize piston ring set for the V8 6.2L, it goes into the 2010-2014 Ford F-150, the 2017-2019 Ford E-350 Super Duty and the 2011-2019 Ford F-250 Super Duty, at one set per vehicle. If your truck or van is not named here, open the "Vehicles it fits" section and look up your exact model and engine.

    Specifications

    Fit and size

    • Oversize: 0.50 mm
    • Cylinders: 8
    • Quantity per vehicle: 1 set
    • Ring set groove widths: 1.5 x 1.5 x 2.5 mm (top, second, oil)

    Build and materials

    • Top ring material: steel with moly
    • Second ring material: ductile iron with phosphate coating
    • Oil ring design: 3-piece flex vent
    • Condition: New
    • Country of origin: United States

    In the box

    Compression rings, rails and an oil spacer.

    Interchange: PR4224.20 · M10268-.50 · 42267CP.020
    2M452050MM

    This part cross-references / interchanges with the following part numbers:

    PR4224.20, M10268-.50, 2M452050MM, 42267CP.020

    Frequently Asked Questions

    Does the Sealed E1004K .50MM piston ring set fit a 2010-2014 Ford F-150 with the 6.2L V8?

    Yes. Sealed E1004K .50MM is listed for the 2010-2014 Ford F-150 V8 6.2L. The "Vehicles it fits" section shows the other vehicles it covers.

    What comes in this 0.50 mm oversize piston ring set?

    The box holds compression rings, rails and an oil spacer. The oil ring is a 3-piece flex vent design.

    What ring widths does the Sealed E1004K .50MM piston ring set have?

    Sealed E1004K .50MM has a 1.50 mm top ring, a 1.50 mm second ring and a 2.50 mm oil ring, matching groove widths of 1.5 x 1.5 x 2.5 mm.

    What are the signs of worn piston rings on a V8 6.2L?

    Heavy oil use, blue exhaust smoke and low compression can mean the rings are worn. A shop can run the compression or leak-down test that shows their condition.

    Is this piston ring set standard size?

    No. This set is 0.50 mm oversize, so it goes with a cylinder bore machined to that oversize.
