Piston Ring Set for 2011-2017 Ford F-150 & More - Sealed E1005K .50MM

$133.99
WARNING:California Proposition 65▾
Sealed Power Engine Piston Ring Set E-1005K.50MM
Sealed Power Engine Piston Ring Set E-1005K.50MM

Vehicles this part fits
    Part number: E-1005K.50MM
    UPC: 019826225917
    Condition: New
    Weight: 0.80 LBS
    Item Package Quantity: 1
    $133.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert

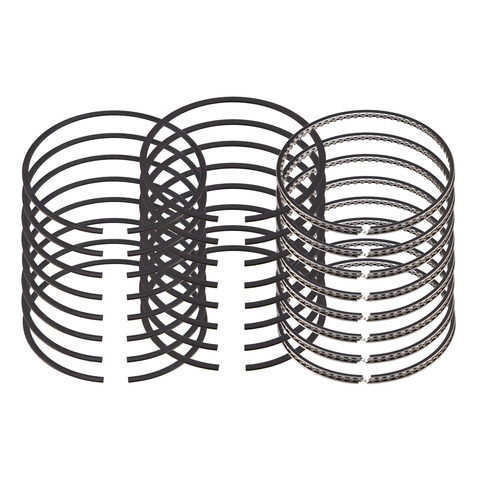

    Sealed Power Engine Piston Ring Set P/N:E1005K .50MM
    Sealed Power Engine Piston Ring Set P/N:E1005K .50MM
    $133.99
    $133.99

    Sealed E1005K .50MM piston ring set for the 2011-2017 Ford F-150 V8 5.0L and other vehicles seals each piston against its cylinder wall and controls oil. This engine piston ring set holds compression in the cylinder and scrapes excess oil from the walls.

    • Moly-plasma top ring with a porous surface that carries oil, forms a more effective compression seal and cuts friction and drag
    • Second rings seat instantly and control inter-ring pressure to improve cylinder sealing
    • Second rings transfer heat from the piston to the cylinder and aid oil control
    • 3 piece flex vent oil rings keep tension uniform while assuring a positive seal

    Quick facts

    • Part: Sealed E1005K .50MM piston ring set
    • Also called: engine piston ring set
    • Fits: the 2011-2017 Ford F-150 V8 5.0L and other vehicles
    • Material: Top ring steel with moly, second ring grey iron with phosphate coating
    • Condition: New

    Rising oil use, blue exhaust smoke or low compression can mean worn rings. These signs alone do not prove the rings are the problem; leaking valve seals can also burn oil.

    Fits

    It fits the 2011-2017 Ford F-150 V8 5.0L and the 2011-2017 Ford Mustang V8 5.0L, and both take one set.

    Specifications

    Fit and size

    • Oversize: 0.50 mm
    • Ring widths: top 1.20 mm, second 1.20 mm, oil 2.50 mm (groove widths 1.2 x 1.2 x 2.5 mm)
    • Cylinder quantity: 8
    • Quantity per vehicle: 1 set

    Build and materials

    • Top ring: steel with moly
    • Second ring: grey iron with phosphate coating
    • Second ring face design: reverse torsional
    • Oil ring design: 3 piece flex vent
    • Condition: New
    • Country of origin: United States

    In the box

    Compression rings, rails and oil spacer.

    Interchange: PR4299.20 · M92218-.50 · 021-6925-020 · 42149CP.020
    42149CP20 · 2M4599020

    This part cross-references / interchanges with the following part numbers:

    42149CP20, PR4299.20, M92218-.50, 2M4599020, 021-6925-020, 42149CP.020

    Frequently Asked Questions

    Do these Mustang piston rings fit the 2011-2017 Ford Mustang V8 5.0L?

    Yes. Sealed E1005K .50MM fits the 2011-2017 Ford Mustang V8 5.0L, and that engine takes one set.

    Is this piston ring set oversized, and by how much?

    Yes. Sealed E1005K .50MM is oversized by 0.50 mm, with 1.20 mm top and second rings and a 2.50 mm oil ring.

    Does the E1005K .50MM set include the rails and oil spacer?

    Yes. The box holds the compression rings, rails and oil spacer.

    What is the top ring made of on this piston ring set?

    The top ring is steel with moly and has a porous moly-plasma surface that carries oil. The second ring is grey iron with a phosphate coating.

    How is the oil ring built in this piston ring set?

    The oil ring is a 3 piece flex vent design that keeps tension uniform while assuring a positive seal.
