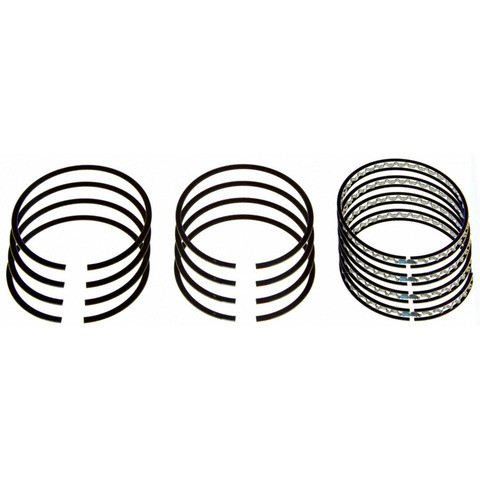

Sealed E1006KC 1.00MM piston ring set for the 2009-2019 Ford Escape 4-cylinder 2.5L and other vehicles seals the combustion chamber and controls oil. This 1.00 mm oversize set covers four cylinders.
- Steel top ring with chrome-plated facing for performance under demanding conditions
- Second ring seats instantly and controls inter-ring pressure to improve cylinder sealing
- Second ring moves heat from the piston to the cylinder wall and aids oil control
- 3-piece flex vent oil ring keeps tension uniform while holding a positive seal
Quick facts
- Part: Sealed E1006KC 1.00MM piston ring set
- Also called: engine piston ring set
- Fits: 2009-2019 Ford Escape 4-cylinder 2.5L and other vehicles
- Material: Top ring steel with chrome; second ring grey iron with phosphate coating
- Condition: New
Heavy oil use and blue exhaust smoke can mean worn rings, and so can low compression. Oil use can also come from other sources, so with the engine off and cool, have a shop run a compression or leak-down test and measure the cylinder bores before you order.
Fits
The 2009-2019 Ford Escape 4-cylinder 2.5L, the 2010-2019 Ford Fusion 4-cylinder 2.5L and the 2014-2019 Ford Transit Connect 4-cylinder 2.5L each take one set, and this piston ring set fits other vehicles too. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Cylinders per set: 4
- Sets per vehicle: 1
- Oversize: 1.00 mm
- Ring set groove widths: 1.2 x 1.2 x 2.5 mm
- Ring widths: top 1.20 mm, second 1.20 mm, oil 2.50 mm
Build and materials
- Top ring: steel with chrome
- Second ring: grey iron with phosphate coating, reverse torsional face
- Oil ring: 3-piece flex vent design
- Condition: New
- Country of origin: United States
In the box
Compression rings, rails and an oil spacer.
Interchange: 42114CP.040 · PR484.40 · S89194-100
2C5162040
This part cross-references / interchanges with the following part numbers:
42114CP040, PR484.40, S89194-100, 2C5162040, 42114CP.040
Frequently Asked Questions
Will Sealed E1006KC 1.00MM fit the 2010-2019 Ford Fusion 4-cylinder 2.5L?
Yes. The Sealed E1006KC 1.00MM piston ring set fits the 2010-2019 Ford Fusion 4-cylinder 2.5L, and that engine takes one set. For other models, open the "Vehicles it fits" section.
What rings come in the Sealed E1006KC 1.00MM set?
The Sealed E1006KC 1.00MM set holds compression rings, rails and an oil spacer, sized for four cylinders.
Is the engine piston ring set standard size or oversize?
Oversize, by 1.00 mm. The groove widths are 1.2 x 1.2 x 2.5 mm for the top, second and oil rings.
What are the top and second rings in this set made of?
The top ring is steel with chrome, and the second ring is grey iron with a phosphate coating. The second ring has a reverse torsional face.
What oil ring design is in this set?
This set has a 3-piece flex vent oil ring, 2.50 mm wide. Its design keeps tension uniform while holding a positive seal.
