Piston Ring Set for 2009-2019 Ford Escape & More - Sealed E1006KC .75MM

$138.99
WARNING:California Proposition 65▾
Sealed Power Engine Piston Ring Set E-1006KC.75MM
Sealed Power Engine Piston Ring Set E-1006KC.75MM

Vehicles this part fits
    Part number: E-1006KC.75MM
    UPC: 019826225955
    Condition: New
    Weight: 0.80 LBS
    Item Package Quantity: 1
    $138.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert

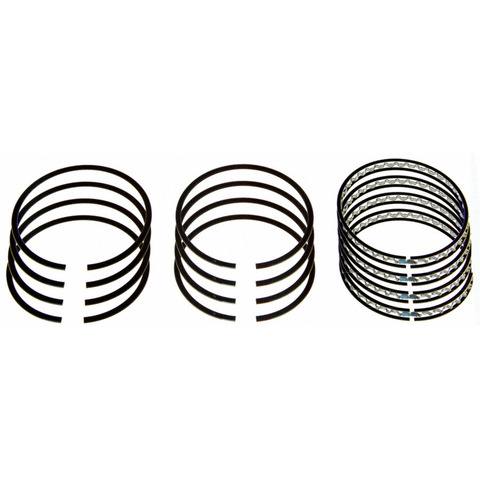

    Sealed Power Engine Piston Ring Set P/N:E1006KC .75MM
    Sealed Power Engine Piston Ring Set P/N:E1006KC .75MM
    $138.99
    $138.99

    Sealed E1006KC .75MM piston ring set for the 2009-2019 Ford Escape 4-cylinder 2.5L and other vehicles seals each piston to its cylinder wall and controls oil along the bore. This 0.75 mm oversized set is sold as one set per engine.

    • Steel top ring with chrome-plated facing
    • Second ring of grey iron with phosphate coating and a reverse torsional face that seats instantly
    • Second ring helps control inter-ring pressure for cylinder sealing and aids heat transfer from piston to cylinder
    • 3-piece flex vent oil ring keeps tension uniform and assures a positive seal

    Quick facts

    • Part: Sealed E1006KC .75MM piston ring set
    • Also called: engine piston ring set
    • Fits: the 2009-2019 Ford Escape 4-cylinder 2.5L and other vehicles
    • Condition: New

    Oil use, blue exhaust smoke or lower compression can mean worn rings. Valve stem seals or a clogged PCV valve can be behind the same signs, so find the cause before buying rings. The set holds one ring pack per cylinder, four for this engine.

    Fits

    The 2010-2019 Ford Fusion 4-cylinder 2.5L and the 2014-2019 Ford Transit Connect 4-cylinder 2.5L take this set too, as do other vehicles. It is a direct-fit replacement for each of them.

    Specifications

    Fit and size

    • Oversize: 0.75 mm
    • Cylinder quantity: 4
    • Quantity per application: 1 set
    • Ring widths: top 1.20 mm, second 1.20 mm, oil 2.50 mm
    • Ring set groove widths: 1.2 x 1.2 x 2.5 mm

    Build and materials

    • Top ring material: steel with chrome
    • Second ring material: grey iron with phosphate coating
    • Second ring face design: reverse torsional
    • Oil ring design: 3-piece flex vent
    • Condition: New
    • Country of origin: United States

    In the box

    Compression rings, rails and an oil spacer.

    Interchange: 42114CP.030 · PR484.30 · S89194-.75
    2C5162030

    This part cross-references / interchanges with the following part numbers:

    42114CP030, PR484.30, S89194-.75, 2C5162030, 42114CP.030

    Frequently Asked Questions

    Will Sealed E1006KC .75MM fit a 2010-2019 Ford Fusion 4-cylinder 2.5L?

    Yes, Sealed E1006KC .75MM fits the 2010-2019 Ford Fusion 4-cylinder 2.5L. If your car is a different one, look it up in the "Vehicles it fits" section on this page.

    What parts come with this engine piston ring set?

    The box holds compression rings, rails and an oil spacer. This listing is one set for a 4-cylinder engine.

    Is this ring set standard size or oversized?

    This set is oversized by 0.75 mm. The top and second rings are 1.20 mm wide and the oil ring is 2.50 mm wide.

    What kind of oil ring does the Sealed E1006KC .75MM have?

    Sealed E1006KC .75MM has a 3-piece flex vent oil ring. Its design keeps tension uniform while assuring a positive seal.

    How can I tell if worn piston rings are the problem?

    Noticeable oil use, blue exhaust smoke or lower power can be signs. A shop can test cylinder compression to see whether the rings are involved.
