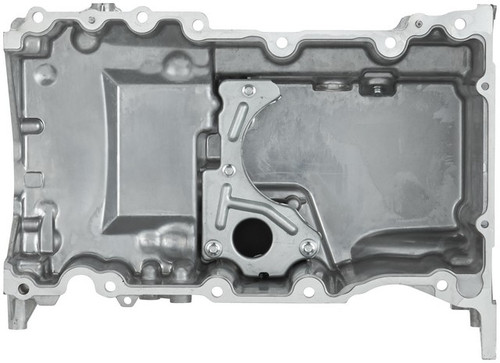

Spectra Premium GMP129A upper lower oil pan for the 2018-2020 Chevrolet Equinox 4-cylinder 2.0L and other vehicles collects and holds engine oil. The Spectra Premium oil pan is built to meet or exceed the performance of the original equipment it replaces.
- Aluminum pan with an uncoated finish
- Baffled pan body
- Oil level sensor port
- Drain plug included, with an M12 - 1.75 thread
- Capacity of 5.7 U.S. quarts
Quick facts
- Part: Spectra Premium GMP129A oil pan
- Also called: engine oil pan
- Fits: 2018-2020 Chevrolet Equinox 4-cylinder 2.0L and other vehicles
- Position: Upper and lower
- Material: Aluminum
- Condition: New
Oil spots where the car is parked, a dented or cracked pan or a damaged drain-plug thread can mean the pan needs replacing. A worn pan gasket, a loose drain plug or a leaking rear main seal can be behind these signs too, so find the cause before buying. One pan sits at the bottom of the engine, and the car takes one.
Fits
This oil pan is a direct-fit replacement for the 2018-2020 Chevrolet Equinox 4-cylinder 2.0L, the 2017-2020 GMC Acadia 4-cylinder 2.5L, the 2016-2020 Buick Envision 4-cylinder 2.0L and the 2017-2020 Envision 4-cylinder 2.5L. If your car isn't named here, look up your year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: upper and lower
- Quantity per vehicle: 1
- Maximum width: 317 mm
- Depth: 156 mm
- Mounting holes: 15
- Drain thread size: M12 - 1.75
- Capacity: 5.7 U.S. quarts
Build and materials
- Material: Aluminum
- Finish: Uncoated
- Baffled: yes
- Oil level sensor port: yes
- Dipstick port: no
- Drain plug: included
- Condition: New
- Country of origin: China
In the box
One oil pan with a drain plug. The pickup, windage tray and crankshaft wiper are not included.
This part cross-references / interchanges with the following part numbers:
264556, 12659287, 12669164, 25201757, 25202731
Frequently Asked Questions
Is this the right Chevy Equinox oil pan for a 2018-2020 Equinox 4-cylinder 2.0L?
Yes. Spectra Premium GMP129A is a direct-fit replacement for the 2018-2020 Chevrolet Equinox 4-cylinder 2.0L. For other years and engines, see the "Vehicles it fits" section.
Does the Spectra Premium engine oil pan come with a drain plug?
Yes, the Spectra Premium GMP129A includes a drain plug with an M12 - 1.75 thread. The oil pickup, windage tray and crankshaft wiper are not included.
How many quarts does this oil pan hold?
This oil pan's listed capacity is 5.7 U.S. quarts. The pan is aluminum with an uncoated finish.
How can I tell if my oil pan is leaking or damaged?
Oil spots where the car is parked, a burning-oil smell or a low oil warning light can be signs of a leaking pan. A shop can find where the leak comes from.
Does this oil pan have an oil level sensor port and a dipstick port?
This oil pan has an oil level sensor port and a baffled body, but no dipstick port.
