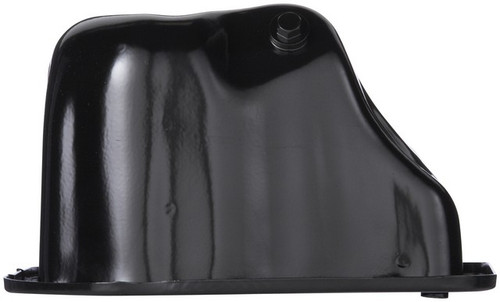

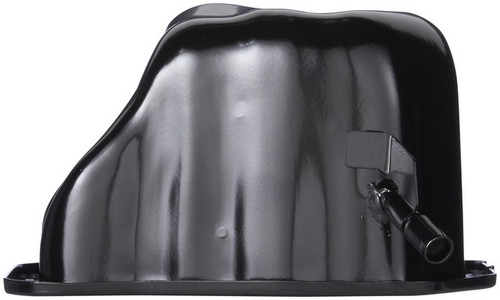

Spectra Premium SUP01A oil pan for the 2004-2005 Subaru Forester H4 2.5L and other vehicles holds engine oil in a wet sump beneath the engine. Engineering, manufacturing technology and quality control behind this Spectra Premium oil pan let it meet or exceed the performance of the original equipment it replaces.
- Cold rolled steel (EDDQ) body with a powder-coated finish
- Baffled wet-sump design
- Dipstick port built into the pan
- 14 mounting holes
- Drain plug included, with an M14 - 1.5 drain thread
Quick facts
- Part: Spectra Premium SUP01A oil pan
- Also called: engine oil pan
- Fits: 2004-2005 Subaru Forester H4 2.5L and other vehicles
- Material: Cold Rolled Steel (EDDQ)
- Condition: New
Oil spots where the car is parked, a dent or crack, or oil loss between changes can mean a damaged engine oil pan. Before you replace it, rule out a loose drain plug, a leaking valve cover or a worn rear main seal, which can drip oil in the same area. Each engine takes a single oil pan on the underside of the block.
Fits
The 2004-2005 Subaru Forester H4 2.5L and the 2002-2005 Subaru Impreza H4 2.0L take this oil pan. It is also an oil pan for the 1996-1999 Subaru Legacy H4 2.5L and other vehicles. Open the "Vehicles it fits" section to check your own car's exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: 1
- Maximum width: 267 mm
- Maximum depth: 163 mm
- Mounting holes: 14
- Drain thread size: M14 - 1.5
- Sump location: Front
Build and materials
- Type: baffled wet sump
- Material: Cold Rolled Steel (EDDQ)
- Finish: powder coated
- Dipstick port: yes
- Oil level sensor port: none
- Condition: new
- Country of origin: China
In the box
One oil pan with its drain plug. The pickup, windage tray and crankshaft wiper are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
3312472052216034, 3310167, 103147, KSUP1A, 264600, 58216, SPISUP01A, 501150, 32011165, 11109AA051, 11109AA052, 11109AA053, OP37707
Frequently Asked Questions
Is this the right oil pan for a 2004-2005 Subaru Forester H4 2.5L?
Yes, Spectra Premium SUP01A fits the 2004-2005 Subaru Forester H4 2.5L, and you can check other models and engines in the "Vehicles it fits" section.
Will this oil pan fit a 2002-2005 Subaru Impreza H4 2.0L?
Yes. Spectra Premium SUP01A is made for the 2002-2005 Subaru Impreza H4 2.0L, and that engine takes one pan.
Does this oil pan come with the drain plug and oil pickup?
The drain plug is included and has an M14 - 1.5 thread. The pickup, windage tray and crankshaft wiper are not included.
What material and finish does the Spectra Premium SUP01A oil pan have?
It is cold rolled steel (EDDQ) with a powder-coated finish. The pan is a baffled wet sump with a dipstick port.
How can I tell if my oil pan is damaged?
Oil spots where the car is parked, oil loss between changes or a dent or crack seen during service can mean the oil pan is damaged. A shop can trace the source of a leak.
