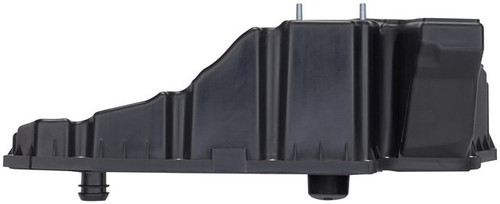

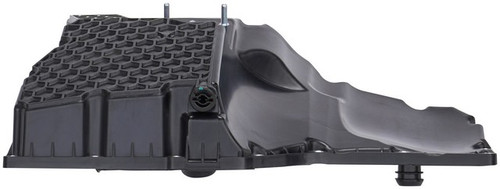

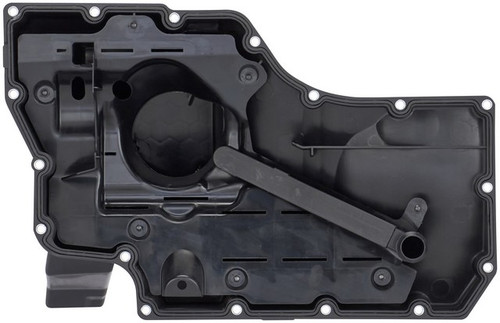

Spectra Premium VWP60A lower oil pan for the 2021-2025 Audi A5 4-cylinder 2.0L and other vehicles holds the engine's oil supply. This Spectra Premium oil pan meets or exceeds the performance of the original equipment it replaces.
- Composite pan body with an uncoated finish
- Windage tray included
- Drain plug included
- Oil level sensor port
- Wet sump with the sump at the front
- 17 mounting holes
Quick facts
- Part: Spectra Premium VWP60A oil pan
- Also called: engine oil pan
- Fits: 2021-2025 Audi A5 4-cylinder 2.0L and other vehicles
- Position: Lower
- Material: Composite
- Condition: New
A cracked or leaking engine oil pan can show up as oil spots where the car is parked or a wet, damaged pan. Oil spots alone do not prove the pan is the problem, since a leaking valve cover gasket can drip in the same area.
Fits
This oil pan fits the 2021-2025 Audi A5 4-cylinder 2.0L, the 2018-2025 Audi A5 Quattro 4-cylinder 2.0L and the 2018-2025 Audi A5 Sportback 4-cylinder 2.0L. The 2021-2025 Audi A5 4-cylinder 2.0L takes a single pan. Other Audi models share this pan too, so open the "Vehicles it fits" section and check your exact model and engine.
Specifications
Fit and size
- Position: Lower
- Quantity per vehicle: 1
- Maximum width: 269 mm
- Maximum depth: 124 mm
- Mounting holes: 17
- Sump location: Front
Build and materials
- Material: Composite
- Finish: Uncoated
- Sump type: Wet
- Baffled: No
- Windage tray: included
- Oil level sensor port: Yes
- Dipstick port: No
- Condition: New
- Country of origin: China
In the box
One lower oil pan with a windage tray and a drain plug. The oil pickup and crank shaft wiper are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
3312469904732423, 06L103598R
Frequently Asked Questions
Is this the oil pan for a 2021-2025 Audi A5 4-cylinder 2.0L?
Yes, Spectra Premium VWP60A fits the 2021-2025 Audi A5 4-cylinder 2.0L and the 2018-2025 Audi A5 Quattro 4-cylinder 2.0L. Check the "Vehicles it fits" section for your exact model.
Does the Spectra Premium VWP60A oil pan come with a drain plug and windage tray?
Yes, Spectra Premium VWP60A includes a drain plug and a windage tray. The oil pickup and crank shaft wiper are not included.
Does this lower oil pan have a port for an oil level sensor?
Yes, this lower oil pan has an oil level sensor port. It has no dipstick port, and it is a wet sump pan with the sump at the front.
How can I tell if a composite oil pan is damaged?
Oil spots where the car is parked, oil seeping around the pan or a visible crack can be signs of a damaged pan. A shop can confirm where the leak comes from.
Is the VWP60A lower oil pan made of metal?
No. This lower oil pan is composite with an uncoated finish.
