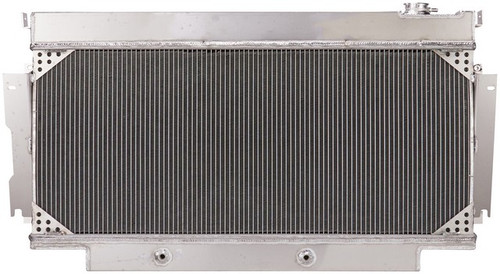

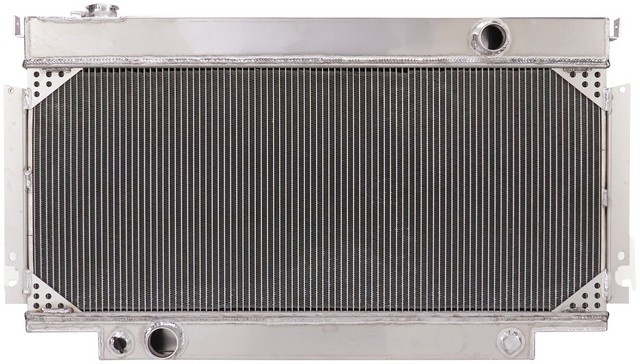

Spectra Premium CU1166 radiator for the 1984 Ford F-150 V8 6.9L and other vehicles sheds heat from the engine coolant. Its structure and design are built to carry the same durability and expectations as the OE.
- Two-row aluminum core with aluminum tanks
- Down-flow layout with the inlet at the top right and the outlet at the bottom right
- Internal transmission oil cooler with hose barb 8mm fittings
- Bottom saddle and top flange mounting
Quick facts
- Part: Spectra Premium CU1166 radiator
- Fits: 1984 Ford F-150 V8 6.9L and other vehicles
- Material: Aluminum
- Condition: New
A stuck thermostat, a weak water pump, a leaking hose or a bad radiator cap can be behind overheating or coolant loss too, so find the cause before buying a radiator. Coolant stains on the core or tanks can mean the radiator itself is leaking.
Fits
It is a Ford F-250 radiator for the 1983-1987 V8 6.9L and the 1988-1996 V8 7.3L, and it also fits the 1983-1987 Ford F-350 V8 6.9L and the 1988-1996 F-350 V8 7.3L; one radiator is needed for each. If your vehicle is not named here, open the "Vehicles it fits" section and check your exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: 1
- Core size: 36.9375 in wide, 15.5625 in high, 2.4375 in thick
- Core rows: 2
- Inlet diameter: 1.75 in
- Outlet diameter: 2 in
- Inlet and outlet headers: 37.5 in long, 3.5 in wide
- Transmission oil cooler: 12 in between fittings
Build and materials
- Flow type: Down flow
- Core material: Aluminum
- Tank material: Aluminum
- Transmission oil cooler: internal, plated, 4 plates
- Condition: New
- Country of origin: Jordan
In the box
One radiator with its built-in transmission oil cooler. A frame and an engine oil cooler are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Is this one of the Ford F-150 radiators that fit the 1984 model with the V8 6.9L?
Yes. Spectra Premium CU1166 fits the 1984 Ford F-150 V8 6.9L. For another model or engine, open the "Vehicles it fits" section.
Is this a Ford F-350 radiator for the 1983-1987 V8 6.9L and the 1988-1996 V8 7.3L?
Yes. Spectra Premium CU1166 fits the 1983-1987 Ford F-350 V8 6.9L and the 1988-1996 F-350 V8 7.3L.
Does this radiator come with a transmission oil cooler?
Yes. This radiator has an internal transmission oil cooler with hose barb 8mm fittings. A frame and an engine oil cooler are not included.
What size are the inlet and outlet on this two-row radiator?
The inlet is 1.75 in in diameter and sits at the top right. The outlet is 2 in in diameter and sits at the bottom right.
How can I tell if this aluminum radiator is leaking?
With the engine off and cool, look for coolant stains, wet spots or corrosion on the tanks and core. A shop can pressure-test the cooling system to confirm a leak.
