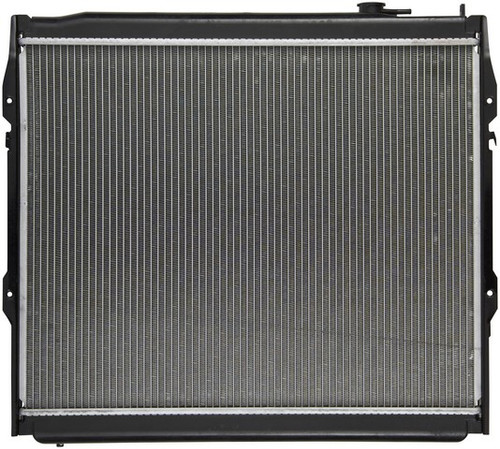

Spectra Premium CU1774 radiator for the 1995-2004 Toyota Tacoma 4-cylinder 2.4L, 2.7L or V6 3.4L carries heat from the engine coolant to the air passing through its core. Its structure and design are built for the same durability and expectations as the OE radiator.
Coolant stains around the core or tanks, or a temperature gauge that climbs, can mean the radiator is leaking or clogged. Before you replace the radiator, rule out a sticking thermostat, a worn hose or radiator cap and a weak cooling fan, because each of those can also cause overheating. If the radiator is the cause, this one replaces it.
This radiator is a direct-fit replacement for the 1995-2004 Toyota Tacoma 4-cylinder 2.4L, 2.7L or V6 3.4L.
Fit and size
Build and materials
One radiator with its built-in transmission oil cooler. This listing holds one radiator, and the 1995-2004 Toyota Tacoma 4-cylinder 2.4L, 2.7L or V6 3.4L takes one. A frame and an engine oil cooler are not included.
Is this radiator right for the 1995-2004 Toyota Tacoma 4-cylinder 2.4L, 2.7L or V6 3.4L?
Yes. Spectra Premium CU1774 is a direct-fit radiator for the 1995-2004 Toyota Tacoma with the 4-cylinder 2.4L, 4-cylinder 2.7L or V6 3.4L engine.
Is a frame included with the CU1774 radiator?
No. The Spectra Premium CU1774 listing is one radiator with its built-in transmission oil cooler; a frame and an engine oil cooler are not included.
What diameter are the inlet and outlet on this radiator?
Both the inlet and the outlet are 1.3125 in in diameter. The inlet is at the top right and the outlet at the bottom right.
Which flow type does this radiator have, down flow or cross flow?
This radiator is a down-flow design with a single-row aluminum core, plastic tanks and a flange mounting type.
What fittings does the transmission oil cooler on this radiator use?
The built-in concentric transmission oil cooler uses 10mm hose barb fittings, spaced 16.75 in apart.
