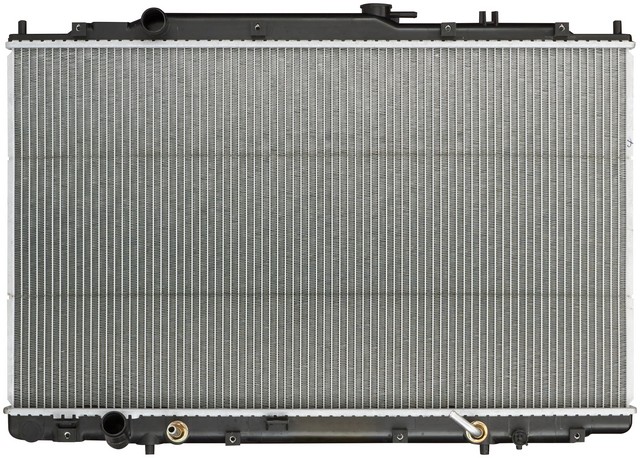

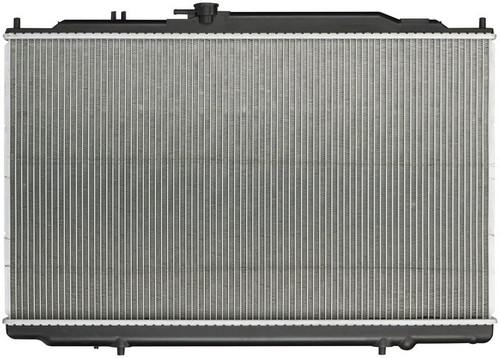

Spectra Premium CU2270 radiator for the 1999-2004 Honda Odyssey V6 3.5L carries hot engine coolant through its core so airflow can pull the heat out. Its structure and design are built to meet the same durability expectations as the OE radiator.
- Aluminum core with plastic tanks
- Single-row, down-flow core layout
- Internal concentric transmission oil cooler with 10 mm hose barb fittings
- Post-style mounting
Quick facts
- Part: Spectra Premium CU2270 radiator
- Fits: 1999-2004 Honda Odyssey V6 3.5L
- Material: aluminum core, plastic tanks
- Condition: New
Coolant stains under the car, a temperature gauge that climbs or a falling coolant level can mean a radiator is leaking. A hose, a clamp or the radiator cap can leak too, so look over the core, tank seams and hose connections for wetness, cracks or crusty residue before replacing it. Do this only with the engine off and fully cold, and never open a hot cooling system.
Fits
This radiator is a direct-fit replacement for the 1999-2004 Honda Odyssey V6 3.5L.
Specifications
Fit and size
- Core size: 30.25 in wide, 17.6875 in high, 0.625 in thick, 1 row
- Inlet and outlet diameter: 1.25 in each
- Inlet and outlet headers: 31.25 in long, 2 in wide each
- Inlet location: top left
- Outlet location: bottom right
- Mounting type: post
- Quantity per vehicle: 1
Build and materials
- Core material: aluminum
- Tank material: plastic
- Flow type: down flow
- Transmission oil cooler: internal, concentric, 10 mm hose barb fittings, 14.75 in between fittings
- Engine oil cooler: not included
- Condition: New
- Country of origin: China
In the box
One radiator with its built-in transmission oil cooler. The 1999-2004 Honda Odyssey V6 3.5L takes one. A frame and an engine oil cooler are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
2270, 17788000045934061, 8012270, 2604, C2270, 0AHD5474, 2213214, 2270C, 19010P8FA51, RAD2270, A2270, 2846, 431506, NR2270B, OR2270, 2270DPI, HO3010138, 412270, 7369A, 9662, RA2270C
Frequently Asked Questions
Is CU2270 the right radiator for the 1999-2004 Honda Odyssey V6 3.5L?
Yes. Spectra Premium CU2270 is a direct-fit radiator for the 1999-2004 Honda Odyssey V6 3.5L, and that vehicle takes one.
Does the Spectra Premium CU2270 come with a transmission oil cooler?
Yes. The Spectra Premium CU2270 has an internal concentric transmission oil cooler with 10 mm hose barb fittings. An engine oil cooler and a frame are not included.
Where are the inlet and outlet on this radiator, and how big are they?
The inlet is at the top left and the outlet is at the bottom right, both 1.25 in in diameter. It is a down-flow design.
What are the core and tanks made of on this radiator?
The core is aluminum and the tanks are plastic. The core is a single row, 30.25 in wide and 17.6875 in high.
What mounting type does this radiator use?
This radiator uses post-style mounting. A frame is not included in the box.
