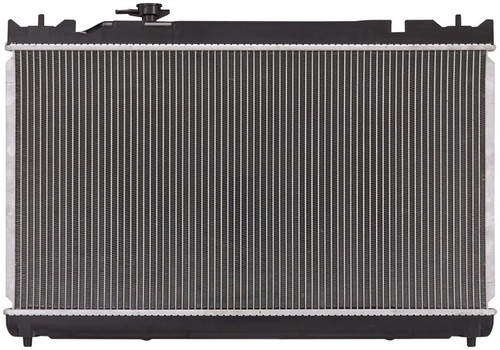

Spectra Premium CU2437 radiator for the 2002-2006 Toyota Camry 4-cylinder 2.4L sheds engine heat from the coolant that flows through it. Its structure and design are built to the same durability and expectations as the OE radiator.
- Aluminum core, one row, with plastic tanks
- Down flow layout with the inlet at the top left and the outlet at the bottom right
- Built-in concentric transmission oil cooler with 10mm hose barb fittings
- Post mounting type
Quick facts
- Part: Spectra Premium CU2437 radiator
- Fits: 2002-2006 Toyota Camry 4-cylinder 2.4L
- Material: aluminum core, plastic tanks
- Condition: New
Coolant leaking from the core or tanks, a temperature gauge that climbs, or coolant that keeps dropping can mean the radiator is failing. Before you replace it, rule out a stuck thermostat, a weak water pump, a loose hose clamp and a failed cooling fan, since each of them can also send the temperature up. Check for wet spots only with the engine off and cool.
Fits
It is a direct-fit Toyota Camry radiator replacement for the 2002-2006 Camry with the 4-cylinder 2.4L (L4-2.4L).
Specifications
Fit and size
- Quantity per vehicle: 1
- Core size: 28.6875 in wide, 15.6875 in high, 0.625 in thick
- Inlet diameter: 1.3125 in
- Outlet diameter: 1.3125 in
- Inlet header: 29.75 in long, 1.4375 in wide
- Outlet header: 29.75 in long, 2.0625 in wide
- Transmission oil cooler distance between fittings: 14.75 in
- Mounting type: Post
Build and materials
- Core material: Aluminum
- Tank material: Plastic
- Core rows: 1
- Flow type: Down flow
- Transmission oil cooler: internal, concentric, hose barb 10mm fittings
- Condition: New
- Country of origin: Cambodia
In the box
One radiator with its built-in transmission oil cooler; this listing holds one, and the car takes one. The radiator frame and an engine oil cooler are not included.
This part cross-references / interchanges with the following part numbers:
2436, 17788000045933899, 8012437, 246, 38961, 3143, C2437, 2437, 2210505, 2436C, RAD2437, A2437, 164000H020, 2929, OR2437, 2437DPI, 2428, 2710, 412437, 432701, 164000H030, 164000H200, 1640028270, 16410YZZAF
Frequently Asked Questions
Is this Toyota Camry radiator a fit for the 2002-2006 Camry with the 4-cylinder 2.4L?
Yes. Spectra Premium CU2437 is listed for the 2002-2006 Toyota Camry 4-cylinder 2.4L (L4-2.4L), and the car takes one radiator.
Does the CU2437 radiator come with a transmission oil cooler?
Yes. Spectra Premium CU2437 has a built-in concentric transmission oil cooler with 10mm hose barb fittings. The radiator frame and an engine oil cooler are not included.
What are the core and tank materials on this radiator?
The core is aluminum and the tanks are plastic. The core has one row and measures 28.6875 in wide, 15.6875 in high and 0.625 in thick.
How can I tell whether a radiator is leaking?
With the engine off and cool, look at the core, tanks and hose connections for wet spots, stains or cracks. A shop can pressure-test the cooling system to confirm a leak.
What size are the inlet and outlet on the Spectra Premium CU2437?
Both are 1.3125 in in diameter, with the inlet at the top left and the outlet at the bottom right. This down flow radiator mounts on posts.
