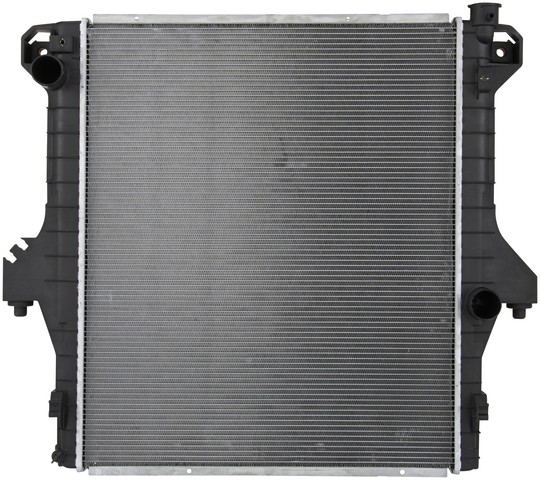

Spectra Premium CU2583 radiator for the 2004-2006 Dodge Ram 1500 V10 8.3L and other vehicles sheds engine heat from the coolant that flows through it. The structure and design of a Spectra Premium radiator are built to carry the same durability and expectations as the OE.
- Single-row cross-flow aluminum core
- Plastic tank material
- Bottom post and top flange mounting
- Inlet at the top left and outlet at the bottom right
Quick facts
- Part: Spectra Premium CU2583 radiator
- Fits: 2004-2006 Dodge Ram 1500 V10 8.3L and other vehicles
- Material: Aluminum core, plastic tanks
A worn radiator can show coolant stains or leaks at the core or tanks, or an engine that runs hotter than usual. These signs alone do not prove the radiator is at fault; a worn thermostat is another common cause. The cooling system needs one radiator, and this listing is one.
Fits
This radiator is a direct-fit replacement for the 2004-2006 Dodge Ram 1500 V10 8.3L, the 2003 Dodge Ram 2500 V10 8.0L and the 2003 Dodge Ram 3500 V10 8.0L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Core size: 29.4375 in wide, 24.1875 in high, 1.5625 in thick
- Inlet and outlet diameter: 1.9375 in
- Inlet and outlet header: 30.3125 in long, 2.9375 in wide
- Mounting type: bottom post / top flange
Build and materials
- Core material: aluminum
- Tank material: plastic
- Flow type: cross flow
- Core rows: 1
- Country of origin: China
In the box
One radiator. A frame, an engine oil cooler and a transmission oil cooler are not included.
Interchange: 103327 · 2583 · C2583 · 5290803AA · 5290803AB · 5290803AC · 5290803AE · 5290803AF · 55056392AA · 55056392AB · 55056392AC · 0ACR5695 · 2583C · RAD2583 · 2402 · 2917 · 412583
This part cross-references / interchanges with the following part numbers:
103327, 2583, C2583, 5290803AA, 5290803AB, 5290803AC, 5290803AE, 5290803AF, 55056392AA, 55056392AB, 55056392AC, 0ACR5695, 2583C, RAD2583, 2402, 2917, 412583
Frequently Asked Questions
Does Spectra Premium CU2583 work as a Ram 2500 radiator for the 2003 Dodge Ram 2500 V10 8.0L?
Yes. Spectra Premium CU2583 fits the 2003 Dodge Ram 2500 V10 8.0L.
Is this a Ram 3500 radiator for the 2003 Dodge Ram 3500 V10 8.0L?
Yes. This radiator fits the 2003 Dodge Ram 3500 V10 8.0L.
Does this CU2583 radiator come with a frame or oil coolers?
No. Spectra Premium CU2583 is the radiator only; a frame, an engine oil cooler and a transmission oil cooler are not included.
Is the core of this radiator aluminum or plastic?
The core is aluminum and the tanks are plastic. The core is a single-row, cross-flow design.
What size are the inlet and outlet connections on this radiator?
Both the inlet and the outlet are 1.9375 inches in diameter. The inlet sits at the top left and the outlet at the bottom right.
