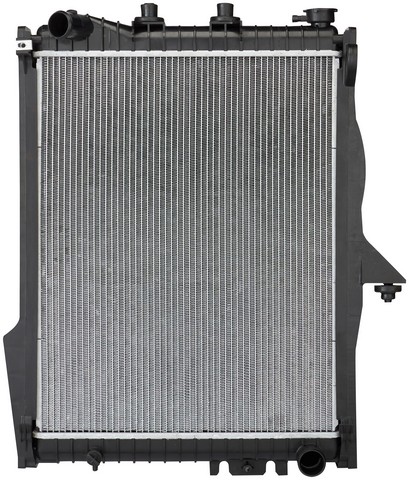

Spectra Premium CU2738 radiator for the 2004-2009 Dodge Durango V6 3.7L, V8 4.7L or 5.7L and other vehicles carries hot coolant through its core so the engine can shed heat. Its structure and design are built for the same durability and expectations as the OE.
- Aluminum core with two rows and plastic tanks
- Down-flow layout with the inlet at the top left and the outlet at the bottom right
- Inlet and outlet diameters of 1.75 inches
- Post-type mounting
- Inlet and outlet headers each 20.0625 inches long and 2.6875 inches wide
Quick facts
- Part: Spectra Premium CU2738 radiator
- Fits: 2004-2009 Dodge Durango V6 3.7L, V8 4.7L or 5.7L and other vehicles
- Material: aluminum core, plastic tanks
- Condition: New
Coolant leaks at the tanks or core, a temperature gauge that climbs, or overheating can mean a radiator is failing. A stuck thermostat, a weak water pump, a collapsed hose or a cooling fan that does not run can be behind the same signs, so find the cause before you buy a radiator.
Fits
This radiator is a direct-fit replacement for the 2004-2009 Dodge Durango V6 3.7L, V8 4.7L or 5.7L and the 2007-2009 Chrysler Aspen V8 4.7L or 5.7L. One radiator goes in each of them.
Specifications
Fit and size
- Quantity per vehicle: 1
- Core height: 24.125 in
- Core width: 18.4375 in
- Core thickness: 1.75 in
- Core rows: 2
- Inlet diameter: 1.75 in
- Outlet diameter: 1.75 in
- Inlet header: 20.0625 in long, 2.6875 in wide
- Outlet header: 20.0625 in long, 2.6875 in wide
- Inlet location: top left
- Outlet location: bottom right
- Mounting type: post
Build and materials
- Core material: aluminum
- Tank material: plastic
- Flow type: down flow
- Internal oil coolers: none
- Condition: New
- Country of origin: China
In the box
One radiator. A frame, an engine oil cooler and a transmission oil cooler are not included.
Interchange: 103195 · 103196 · 8012738 · AR2738 · 2738 · 2739 · 3269 · C2738 · 52029044AA · 52029044AB · 52029044AC · 52029044AD · 0ACR5651 · B2738 · 2738C · RAD2738 · 2481351 · OR2738 · 2738DPI · A273844N · 2956 · 412738 · 438061 · 9473 · RA2738C · 734442 · 9472
This part cross-references / interchanges with the following part numbers:
103195, 103196, 8012738, AR2738, 2738, 2739, 3269, C2738, 52029044AA, 52029044AB, 52029044AC, 52029044AD, 0ACR5651, B2738, 2738C, RAD2738, 2481351, OR2738, 2738DPI, A273844N, 2956, 412738, 438061, 9473, RA2738C, 734442, 9472
Frequently Asked Questions
Does the Spectra Premium CU2738 fit the 2004-2009 Dodge Durango V6 3.7L, V8 4.7L or 5.7L?
Yes. Spectra Premium CU2738 is a direct-fit radiator for the 2004-2009 Dodge Durango with the V6 3.7L, V8 4.7L or V8 5.7L engine, and each takes one.
Is CU2738 an Aspen radiator for the 2007-2009 Chrysler Aspen V8 4.7L or 5.7L?
Yes. Spectra Premium CU2738 is listed for the 2007-2009 Chrysler Aspen V8 4.7L or 5.7L, and the Aspen takes one radiator.
Is this Spectra Premium radiator aluminum or plastic?
Both. The core is aluminum with two rows, and the tanks are plastic.
Where are the inlet and outlet on this down-flow radiator?
The inlet is at the top left and the outlet is at the bottom right. Both are 1.75 inches in diameter.
Does this radiator come with an oil cooler or a frame?
No. This listing is one radiator; a frame, an engine oil cooler and a transmission oil cooler are not included.
