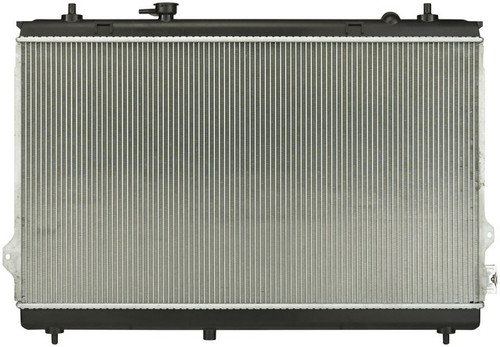

Spectra Premium CU2898 radiator for the 2007-2010 Hyundai Entourage V6 3.8L and other vehicles removes heat from engine coolant. Its structure and design are built to meet the same durability expectations as the OE radiator.
Coolant stains, a cracked plastic tank or an engine that runs hot can mean the radiator is failing. A thermostat, a water pump, a hose or the radiator cap can be behind those signs too, so find the cause before buying. The vehicle takes a single radiator, so order one.
This radiator is a direct-fit replacement for the 2007-2010 Hyundai Entourage V6 3.8L and the 2006-2010 Kia Sedona V6 3.8L.
Fit and size
Build and materials
One radiator with its built-in transmission oil cooler. A frame and an engine oil cooler are not included.
Interchange: 103151 · 8012898 · RK1165 · 2349 · 3409 · C2898 · 0AKA5927 · 2898 · 2219141 · 2898C · 253104D900 · 253104D901 · 253104D902 · 3104D900 · RAD2898 · A2898 · 2480001 · OR2898 · 2476 · 412898 · 438207 · 8862 · RA2898C
This part cross-references / interchanges with the following part numbers:
Is this a radiator for the 2006-2010 Kia Sedona V6 3.8L?
Yes. Spectra Premium CU2898 fits the 2006-2010 Kia Sedona V6 3.8L as well as the 2007-2010 Hyundai Entourage V6 3.8L.
Which side are the inlet and outlet on this Spectra Premium radiator?
The inlet is at the top left and the outlet at the bottom right, in a down-flow layout. Both are 1.375 in in diameter.
How big is the aluminum core on this radiator?
The core is 30.625 in wide, 17.3125 in high and 1 in thick, with one row. The tanks are plastic.
How can I check a radiator for leaks?
With the engine off and cool, look over the core and plastic tanks for coolant stains, wet spots or cracks. A temperature gauge that climbs while driving is also worth noticing.
Does this radiator come with a transmission oil cooler and a frame?
Spectra Premium CU2898 includes the internal transmission oil cooler and mounts on posts. A frame and an engine oil cooler are not included.
