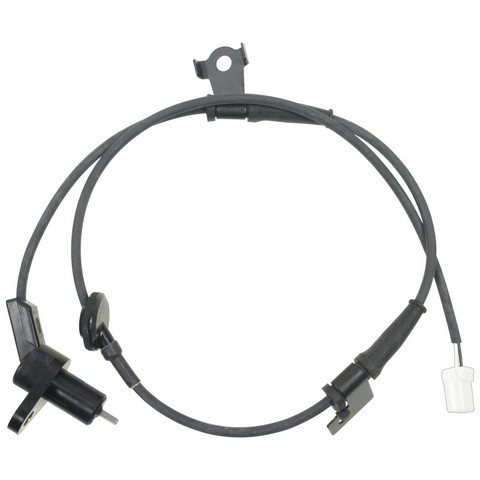

Standard Ignition ALS1157 rear left ABS wheel speed sensor for the 1995-2002 Mazda Millenia reads how fast the wheel turns and passes that signal on to the ABS. It is engineered specifically for Mazda vehicles.
- Durable synthetic material made to withstand harsh operating conditions
- Sealed connector for protection in harsh conditions
- Tested on vehicles for correct integration with electronic safety systems
- Engineered for precision performance and a long service life
Quick facts
- Part: Standard Ignition ALS1157 ABS wheel speed sensor
- Fits: 1995-2002 Mazda Millenia
- Position: Rear left
- Condition: New
A lit ABS or traction control warning light can mean a wheel speed sensor has failed. These signs alone do not prove the sensor is the problem; a damaged wiring harness is another common cause. This listing is one sensor for the rear left, and the rear right takes its own.
Fits
It is a direct-fit replacement for the 1995-2002 Mazda Millenia, and it is tested on vehicles for proper fit.
Specifications
Fit and size
- Position: Rear left
- Quantity per vehicle: 1 at this position
- Number of bolt holes: 2
- Harness length: 38.5 in (970 mm)
- Connector: rectangular, male, 1 connector
- Terminals: 2, blade type, female
Build and materials
- Construction: durable synthetic material
- Connector: sealed
- Condition: New
- Country of origin: Japan
In the box
One ABS wheel speed sensor; the 1995-2002 Mazda Millenia takes one at the rear left. Mounting hardware is not included, so plan on new bolts rather than reusing the old ones.
Installation notes
- Location grommets and wire clips are included on the harness for mounting and routing.
- The clips and grommets on the harness save technicians time.
Interchange: ABS1267 · SU7951 · 530486 · TA014372YB
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
ABS1267, SU7951, 530486, TA014372YB, ALS1157
Frequently Asked Questions
Does the Standard Ignition ALS1157 fit the 1995-2002 Mazda Millenia?
Yes. Standard Ignition ALS1157 is the rear left ABS wheel speed sensor for the 1995-2002 Mazda Millenia, and the car takes one at that position.
Does the Standard Ignition ALS1157 come with mounting bolts?
No. Standard Ignition ALS1157 does not include mounting hardware, but location grommets and wire clips are on the harness. Plan on new bolts for the two bolt holes.
What connector does this ABS sensor use, and how long is the harness?
It has one sealed rectangular male connector with two female blade terminals. The harness is 38.5 in (970 mm) long.
What can a failing rear left wheel speed sensor look like?
An ABS or traction control warning light can come on. A shop can read the stored codes to see which sensor is flagged.
Is this Standard Ignition ABS wheel speed sensor made in Japan?
Yes. The country of origin for this sensor is Japan.
