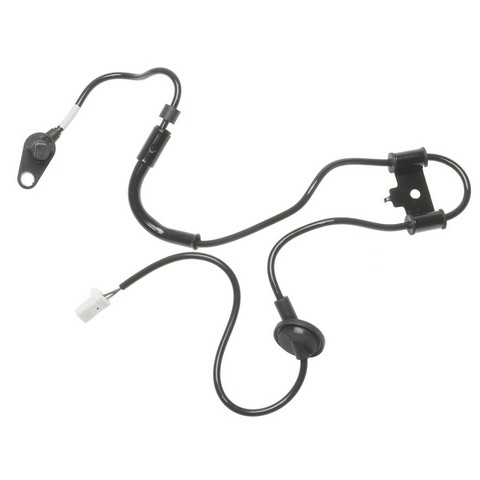

Standard Ignition ALS1705 rear left ABS wheel speed sensor for the 2006-2008 Hyundai Tiburon sends wheel speed signals to the ABS module. This Standard Ignition ABS wheel speed sensor is engineered specifically for Hyundai vehicles.
- Durable synthetic material made to withstand harsh operating conditions
- Location grommets and wire clips on the harness for proper mounting and routing
- Sealed connector for protection in harsh conditions
- Tested on vehicles for proper fit and integration with electronic safety systems
Quick facts
- Part: Standard Ignition ALS1705 ABS wheel speed sensor
- Fits: 2006-2008 Hyundai Tiburon
- Position: Rear left
An ABS warning light or a wheel speed signal that drops out can mean the sensor has failed. Those signs alone do not prove this part is the problem, since damaged wiring is another common cause.
Fits
It is a direct-fit replacement for the 2006-2008 Hyundai Tiburon. This listing is one sensor for the rear left wheel; that car takes one at this position, and the rear right is a separate part.
Specifications
Fit and size
- Position: Rear left
- Mounting location: Spindle
- Quantity per vehicle: 1
- Number of bolt holes: 2
- Harness length: 36 in (914 mm)
Build and materials

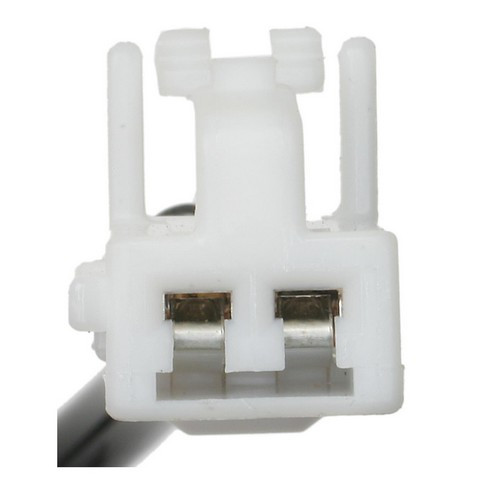

- Connector: rectangular, male, quantity 1
- Terminals: 2, blade, female
- Country of origin: China
In the box
One ABS wheel speed sensor with grommets and wire clips on the harness. Mounting hardware is not included, so plan on new bolts, since the old ones may not be reusable.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Is the Standard Ignition ALS1705 the right sensor for the 2006-2008 Hyundai Tiburon?
Yes. Standard Ignition ALS1705 is the rear left ABS wheel speed sensor for the 2006-2008 Hyundai Tiburon, sold as one sensor for that wheel.
Are the wire clips and grommets on this ABS sensor's harness, and are bolts included?
Yes, location grommets and wire clips come on the harness. Mounting hardware is not included, so you will need bolts for the two bolt holes.
How long is the harness on the Standard Ignition ALS1705?
The Standard Ignition ALS1705 harness is 36 inches (914 mm) long. It ends in a rectangular male connector with two female blade terminals.
What does a failing rear left ABS wheel speed sensor look like to the driver?
One sign a driver may notice is an ABS warning light on the dash. A shop can read the stored codes to see which wheel is reporting a fault.
Will this sensor also work on the rear right wheel?
No. This listing is the rear left sensor, which mounts at the spindle; the rear right wheel takes its own sensor.
