Rear Left ABS Wheel Speed Sensor for 2009-2013 Toyota Matrix - Standard Ignition ALS2331

$385.99

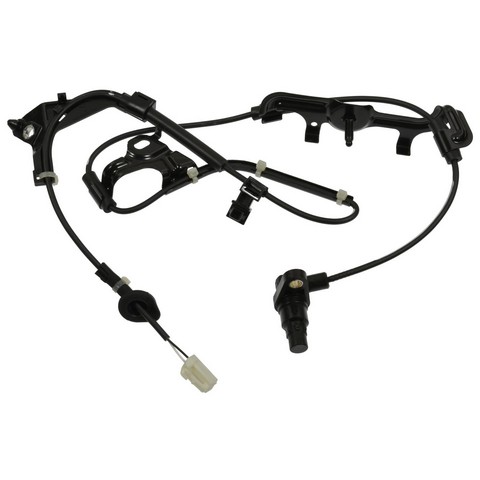

Standard Ignition ABS Wheel Speed Sensor ALS2331

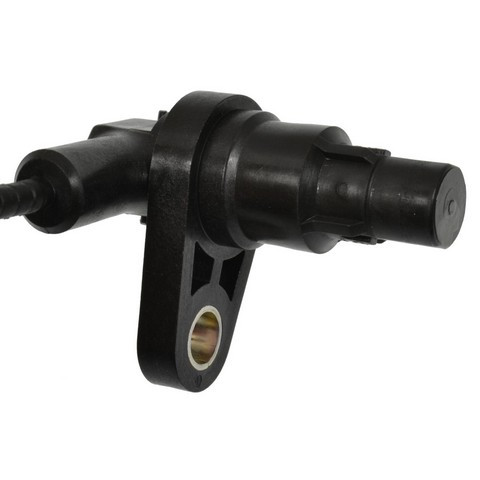

Standard Ignition ABS Wheel Speed Sensor ALS2331 - view 2

Standard Ignition ABS Wheel Speed Sensor ALS2331 - view 3

Part number: ALS2331

UPC: 727943172709

Condition: New

Weight: 0.77 LBS

Sold as: 1 for the rear left side

$385.99

Current Stock: 8

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Standard Ignition ABS Wheel Speed Sensor P/N:ALS2331

$385.99

Description

Standard Ignition ALS2331 rear left ABS wheel speed sensor for the 2009-2013 Toyota Matrix reports wheel speed to the ABS control module. The sensor mounts by a flange on the spindle and connects through a wiring harness.

Synthetic material construction made to withstand harsh operating conditions
Grommets and wire clips come on the harness for mounting and routing
Sealed connector style that protects the electrical connection in harsh conditions
Tested on vehicles for proper fit and correct integration with electronic safety systems

Quick facts

Part: Standard Ignition ALS2331 ABS wheel speed sensor
Fits: 2009-2013 Toyota Matrix
Position: Rear left
Condition: New

A lit ABS or traction control warning light can mean a wheel speed sensor has stopped sending a signal. Before you replace the sensor, rule out a damaged harness, a loose connector and dirt on the part it reads, since any of them can set off the same light. This listing is one sensor for the rear left; the rear right is ordered separately.

Fits

This sensor is an OE replacement for the 2009-2013 Toyota Matrix.

Specifications

Fit and size

Position: Rear left
Quantity: 1 for the rear left side
Mounting location: Spindle
Mounting type: Flange, 1 bolt hole
Harness length: 41 in (1016 mm)

Build and materials

Construction: synthetic material
Connector: 1 rectangular male connector
Terminals: 2 female blade terminals
Wiring harness: included
Condition: New
Country of origin: China

In the box

One rear left ABS wheel speed sensor with its wiring harness. Mounting hardware is not included, so plan on a new mounting bolt rather than reusing the old one.

Product information is for general reference and may contain errors. See our Disclaimer.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

Buyer's Q&A

Frequently Asked Questions

Does the Standard Ignition ALS2331 fit the 2009-2013 Toyota Matrix?

Yes. The Standard Ignition ALS2331 is a rear left ABS wheel speed sensor for the 2009-2013 Toyota Matrix, and this listing is for the left side only.

Does the ALS2331 sensor come with its wiring harness?

Yes. The Standard Ignition ALS2331 includes the wiring harness with its grommets and wire clips. Mounting hardware is not included.

How long is the harness on this rear left wheel speed sensor?

The harness is 41 inches (1016 mm) long and ends in one rectangular connector with two blade terminals.

Can a bad rear wheel speed sensor turn on the ABS light?

It can. A sensor that stops sending a signal can light the ABS or traction control warning, and a shop can test the circuit. Have it checked promptly.

Is the connector on this rear ABS sensor sealed?

Yes. The connector is an OE-style sealed rectangular type with two female blade terminals, made to protect the connection in harsh conditions.
