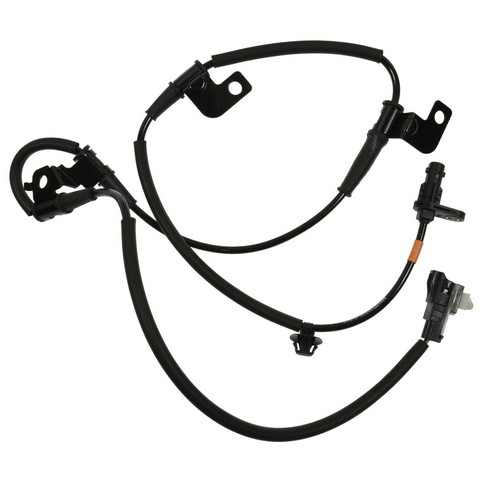

Standard Ignition ALS2337 front right ABS wheel speed sensor for the 2012-2014 Hyundai Azera reports wheel speed to the ABS. The control unit uses that signal to spot a wheel that is starting to lock.
- Durable synthetic material made to withstand harsh operating conditions
- Grommets and wire clips on the harness for mounting and routing in the original locations
- Sealed connector for protection in harsh conditions
- Tested on vehicles for proper fit and correct integration with electronic safety systems
Quick facts
- Part: Standard Ignition ALS2337 ABS wheel speed sensor
- Fits: 2012-2014 Hyundai Azera
- Position: Front right
- Condition: New
A lit ABS or traction control light, or those systems cutting out, can mean this sensor is worn, though a damaged tone ring or a chafed wiring harness can also be behind it. A shop can test the signal if the cause is unclear.
Fits
It is an OE replacement sensor for the 2012-2014 Hyundai Azera. The 2012-2014 Hyundai Azera takes one sensor at the front right position. This listing is a single sensor, and the front left is a separate part.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1

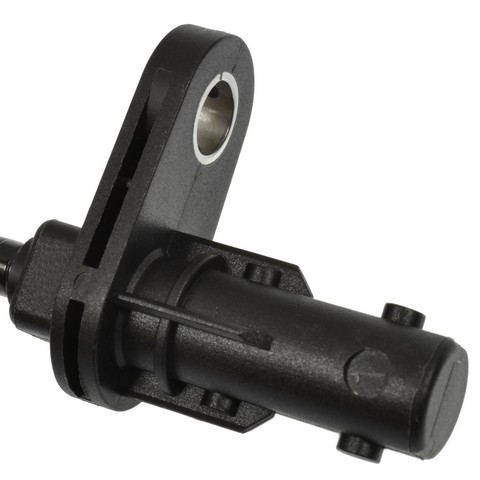

- Mounting location: Spindle
- Mounting type: Flange, 3 bolt holes
- Harness length: 50.5 in (1219 mm)
- Connector: 1 rectangular, female
- Terminals: 2, male blade
Build and materials
- Wiring harness: Included
- Condition: New
- Country of origin: China
In the box
One ABS wheel speed sensor with its wiring harness, grommets and wire clips. Mounting hardware is not included, so plan on new bolts, since the old ones may not be reusable.
Frequently Asked Questions
Is the Standard Ignition ALS2337 the right sensor for the 2012-2014 Hyundai Azera?
Yes. Standard Ignition ALS2337 is the front right ABS wheel speed sensor for the 2012-2014 Hyundai Azera, and the car takes one at this position.
Does this front right ABS sensor come with mounting bolts?
No. The Standard Ignition ALS2337 comes with its wiring harness, grommets and wire clips, but mounting hardware is not included.
How long is the wiring harness on this ABS wheel speed sensor?
The harness is 50.5 inches (1219 mm) long. It ends in a rectangular female connector with two male blade terminals.
What are the signs of a failing front right ABS wheel speed sensor?
An ABS or traction control warning light can point to a worn sensor. With the engine off and cool, look for cracked or chafed wiring and a damaged connector; a shop can test the signal.
Where does the ALS2337 wheel speed sensor mount?
This sensor mounts at the spindle with a flange that has three bolt holes.
