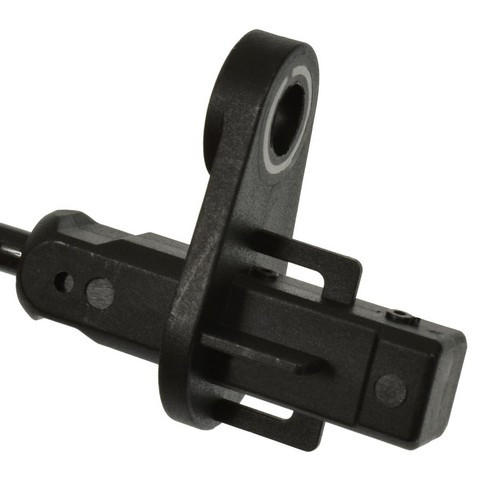

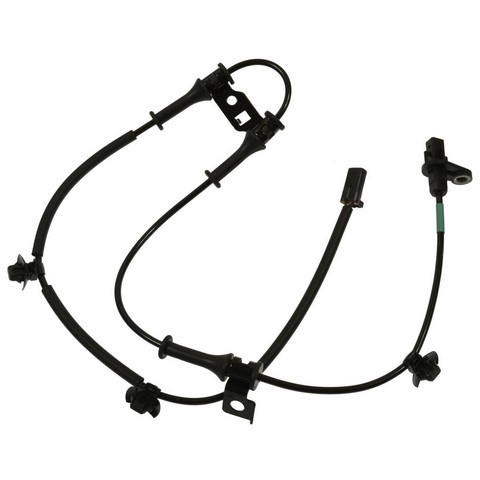

Standard Ignition ALS2558 front right ABS wheel speed sensor for the 2012-2016 Hyundai Elantra and other vehicles reports wheel speed to the ABS. It bolts on at the wheel through two bolt holes and connects through a wiring harness.
- Durable synthetic material made to withstand harsh operating conditions
- Grommets and wire clips come on the harness for mounting and routing
- Sealed connector for protection in harsh conditions
- Tested on vehicles for proper fit and correct integration with electronic safety systems
Quick facts
- Part: Standard Ignition ALS2558 ABS wheel speed sensor
- Fits: 2012-2016 Hyundai Elantra and other vehicles
- Position: Front right
- Condition: New
An ABS warning light can mean a wheel speed sensor has a problem, but a damaged wire or connector can set the same light. Before replacing the sensor, look over the harness and connector for cracks, damage or rust with the engine off; a shop can test the signal. This listing is one sensor for the front right; the 2012-2016 Hyundai Elantra takes one at that position, and the left side is a separate part.
Fits
It fits the 2012-2016 Hyundai Elantra and the 2013-2017 Hyundai Elantra GT.
Specifications
Fit and size
- Position: front right
- Quantity per application: 1
- Mounting location: wheel
- Number of bolt holes: 2
- Harness length: 41.5 in (1054.1 mm)
- Connector: rectangular, male, 1 connector
Build and materials
- Mounting type: bolt mount
- Terminals: 4 female blade terminals
- Wiring harness: included
- Condition: new
- Country of origin: China
In the box
One ABS wheel speed sensor with its wiring harness, grommets and wire clips.
Interchange: ABS2558 · ABSD30845 · 532928 · 59830A5300
This part cross-references / interchanges with the following part numbers:
ABS2558, ABSD30845, 532928, 59830A5300, ALS2558
Frequently Asked Questions
Does the Standard Ignition ALS2558 fit the 2013-2017 Hyundai Elantra GT?
Yes. Standard Ignition ALS2558 is a front right ABS wheel speed sensor listed for the 2013-2017 Hyundai Elantra GT and for the 2012-2016 Hyundai Elantra.
What comes with the Standard Ignition ABS wheel speed sensor?
The sensor comes with its wiring harness, which carries the grommets and wire clips for mounting and routing.
How long is the harness on the ALS2558 ABS sensor?
The Standard Ignition ALS2558 harness is 41.5 inches (1054.1 mm) long. It ends in a rectangular male connector with four female blade terminals.
How does this front right ABS sensor mount?
This sensor is a bolt-mount type with two bolt holes, and it is located at the wheel.
What can a failing wheel speed sensor cause?
Signs can include an ABS warning light or ABS that does not work normally. A shop can test the sensor signal to find the cause.
