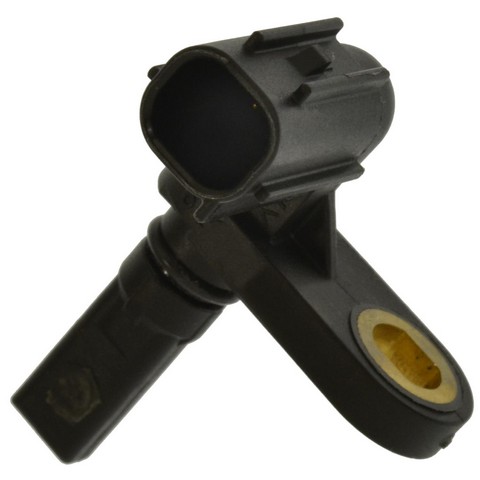

Standard Ignition ALS3167 front left ABS wheel speed sensor for the 2018-2021 Toyota Tundra and other vehicles reads wheel rotation for the ABS. It mounts at the spindle and passes wheel speed data to the vehicle's electronic safety systems.
- Synthetic material made to withstand harsh operating conditions
- Tested on vehicles for correct integration with electronic safety systems
- Sealed connector for protection in harsh conditions
- Rectangular connector with two male pin terminals
- Single-bolt mounting at the spindle
Quick facts
- Part: Standard Ignition ALS3167 ABS wheel speed sensor
- Fits: 2018-2021 Toyota Tundra and other vehicles
- Position: Front left
A damaged sensor tip, connector or wire can show up as an ABS or traction control warning light, but other faults can light the same lamp. Before replacing anything, look the sensor, connector and wiring over with the engine off for cracks, rust or packed-in debris. A shop can scan the codes and test the circuit.
Fits
This front left sensor fits the 2018-2021 Toyota Tundra and the 2018-2022 Toyota Sequoia.
Specifications
Fit and size
- Position: Front left
- Quantity per vehicle: 1
- Mounting location: Spindle
- Mounting type: Bolt mount, 1 bolt hole
Build and materials
- Connector: Rectangular, female
- Terminals: 2, male pin type
- Harness: None, sensor only
- Country of origin: Thailand
In the box
One front left ABS wheel speed sensor. The front left takes one, and the front right sensor is ordered separately. Mounting hardware, a dust shield and a wiring harness are not included, so plan on new mounting hardware rather than reusing the old.
Interchange: ABS3167 · ABSA80 · 533538 · 895430C030
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
ABS3167, ABSA80, 533538, ALS3167, 895430C030
Frequently Asked Questions
Will Standard Ignition ALS3167 work on a 2018-2022 Toyota Sequoia?
Yes. Standard Ignition ALS3167 is a front left ABS wheel speed sensor that fits the 2018-2022 Toyota Sequoia.
Does the Standard Ignition ABS wheel speed sensor come with a wiring harness?
No. This listing is one sensor with no harness. Mounting hardware and a dust shield are not included either.
What kind of connector does the ALS3167 sensor use?
Standard Ignition ALS3167 has a rectangular female connector with two male pin terminals, sealed against harsh conditions. It attaches with one bolt at the spindle.
What can a failing front left wheel speed sensor look like?
An ABS or traction control warning light can come on, or you may see a cracked sensor or damaged wiring on inspection. A shop can scan the codes to confirm the cause.
Does ALS3167 cross to 895430C030?
Yes. 895430C030 is an interchange number for this sensor, along with ABS3167, ABSA80 and 533538.
