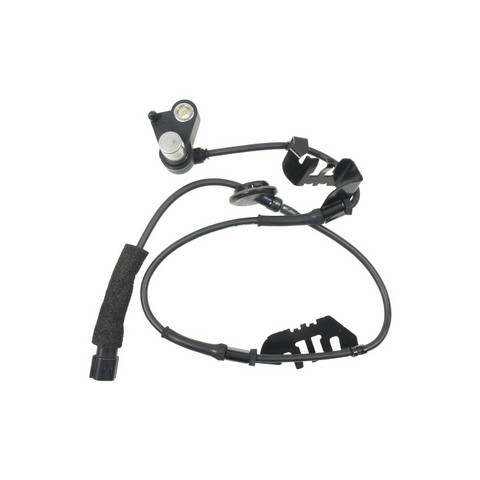

Standard Ignition ALS860 front right ABS wheel speed sensor for the 1992-1996 Mazda MX-3 reads wheel rotation and sends that signal to the ABS. This Standard Ignition ABS wheel speed sensor is engineered specifically for Mazda vehicles.
- Durable synthetic material made to withstand harsh operating conditions
- Location grommets and wire clips on the harness for mounting and routing
- Sealed connector for protection in harsh conditions
- Tested on vehicles for correct integration with electronic safety systems
- 30 in (760 mm) harness length
Quick facts
- Part: Standard Ignition ALS860 ABS wheel speed sensor
- Fits: 1992-1996 Mazda MX-3
- Position: Front right
- Condition: New
An ABS warning light can mean this sensor is worn or has failed, though a damaged tone ring or damaged wiring can be behind the same light, so find the cause before replacing anything. If the sensor is the cause, this one replaces it.
Fits
This sensor is a direct-fit replacement for the front right wheel of the 1992-1996 Mazda MX-3, and it is tested on vehicles for proper fit.
Specifications
Fit and size
- Position: Front right
- Mounting location: Wheel
- Quantity per vehicle: 1 for this side
- Number of bolt holes: 1
- Harness length: 30 in (760 mm)
Build and materials

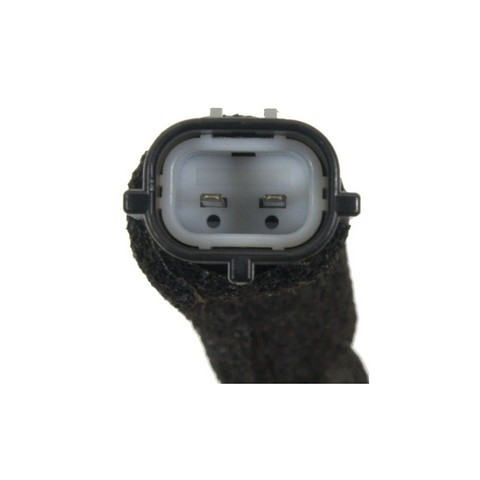

- Connector: 1 rectangular, female
- Terminals: 2, male blade
- Condition: New
- Country of origin: Japan
In the box
One front right ABS wheel speed sensor. This listing is one sensor, and the front right of the 1992-1996 Mazda MX-3 takes one; the front left is ordered separately. Mounting hardware is not included, so plan on a new bolt.
Interchange: ABS970 · ABSD31142 · 530341 · B6034370XD · B6034370XE · E0424370X · E0424370XA
This part cross-references / interchanges with the following part numbers:
ABS970, ABSD31142, 530341, B6034370XD, B6034370XE, E0424370X, E0424370XA, ALS860
Frequently Asked Questions
Does the Standard Ignition ALS860 fit the 1992-1996 Mazda MX-3?
Yes. Standard Ignition ALS860 is a front right ABS wheel speed sensor for the 1992-1996 Mazda MX-3. The front left side is a separate part.
Does this front right ABS sensor come with a mounting bolt?
No. The Standard Ignition ALS860 does not include mounting hardware. Its harness does carry location grommets and wire clips for mounting and routing.
How long is the harness on this ABS wheel speed sensor?
The harness is 30 inches (760 mm) long. It ends in one rectangular female connector with two male blade terminals.
What can a failing front right ABS sensor cause?
An ABS warning light can come on, and the ABS may lose the wheel speed signal from that corner. A shop can test the sensor and its wiring.
Does Standard Ignition ALS860 replace ABS970?
Yes. ABS970 is listed as an interchange number for Standard Ignition ALS860, along with ABSD31142, 530341 and several other numbers on the Interchange line.
