Standard Ignition ALS919 front left ABS wheel speed sensor for the 1993-1995 Mazda RX-7 reports wheel rotation speed to the ABS. This Standard Ignition ABS wheel speed sensor is engineered specifically for Mazda vehicles.
- Durable synthetic material made to withstand harsh operating conditions
- Location grommets and wire clips on the harness for proper mounting and routing
- Tested on vehicles for correct integration with electronic safety systems
- Sealed connectors for protection in harsh conditions
Quick facts
- Part: Standard Ignition ALS919 ABS wheel speed sensor
- Fits: 1993-1995 Mazda RX-7
- Position: Front left
- Condition: New
An ABS warning light can mean the sensor has failed, but damaged wiring or a corroded connector can set it off too. With the engine off, look over the front left harness and connector for chafing, cracks or corrosion before you replace the sensor.
Fits
This ABS wheel speed sensor fits the 1993-1995 Mazda RX-7 and takes one at the front left; the front right sensor is a separate part ordered on its own.
Specifications
Fit and size
- Position: Front left
- Mounting location: Wheel
- Quantity per application: 1
- Number of bolt holes: 3
- Harness length: 42 in (1070 mm)
- Connector quantity: 1
- Terminal quantity: 2
Build and materials
- Condition: New
- Connector: rectangular, female
- Terminals: blade, male
- Country of origin: Japan
In the box
One front left ABS wheel speed sensor. Mounting hardware is not included, so plan on new bolts.
Interchange: ABS1029 · ABSC20451 · 530326 · FD044373XB · FD044373XD · FD054373XC
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
ABS1029, ABSC20451, 530326, FD044373XB, FD044373XD, FD054373XC, ALS919
Frequently Asked Questions
Is the Standard Ignition ALS919 the right sensor for the 1993-1995 Mazda RX-7?
Yes. Standard Ignition ALS919 is the front left ABS wheel speed sensor for the 1993-1995 Mazda RX-7. The front right side is a separate part.
Does the ALS919 sensor come with mounting bolts?
No. Standard Ignition ALS919 does not include mounting hardware, so plan on new bolts. The location grommets and wire clips are already on the harness.

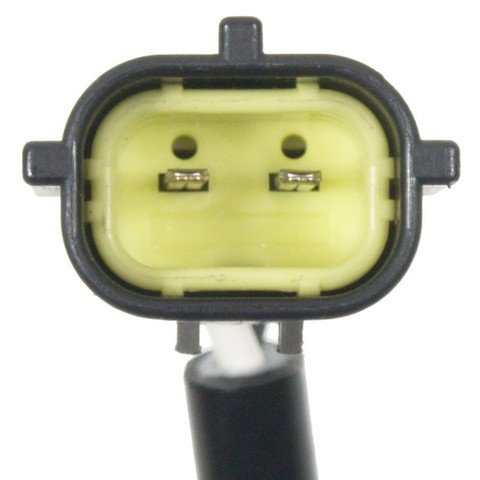

What connector does this front left ABS sensor use, and how long is its harness?
It has one rectangular female connector with two male blade terminals. The harness is 42 inches (1070 mm) long.
What are the signs of a failing front left wheel speed sensor?
An ABS warning light is a common sign, though wiring or the connector can also set it. A shop can read the stored code and test the circuit.
Is ALS919 interchangeable with part number 530326?
Yes. 530326 is one of the numbers that Standard Ignition ALS919 replaces. This sensor is the front left position only.
