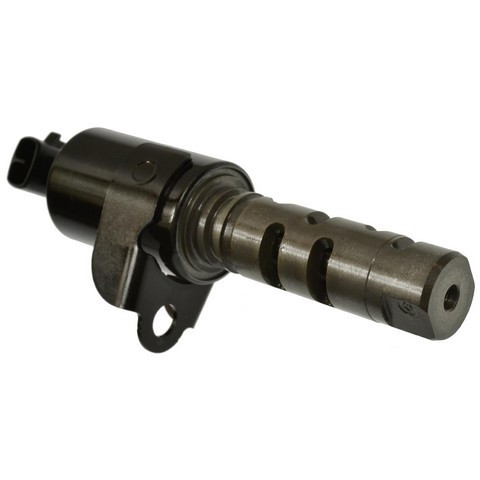

Standard Ignition VVT316 right VVT solenoid for the 2005-2011 Volvo XC90 V8 4.4L and other vehicles uses electromagnetic activation to help control variable valve timing. Also called a variable valve timing solenoid, it is specifically engineered for Volvo engines.
- Designed to help restore engine horsepower and torque curves and to help reduce emissions
- 100% end-of-line testing after an extensive design process
- Electromagnetic activation on a 12-volt circuit

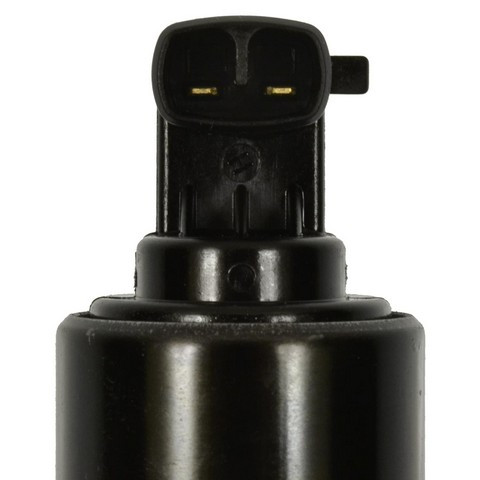

- Rectangular female connector with two male blade terminals
- Metal and plastic housing
Quick facts
- Part: Standard Ignition VVT316 VVT solenoid
- Also called: variable valve timing solenoid
- Fits: 2005-2011 Volvo XC90 V8 4.4L and other vehicles
- Position: Exhaust (right)
- Material: Metal, plastic housing
- Condition: New
A rough idle, reduced power or a check engine light can mean this solenoid is worn, though a camshaft position sensor or the cam phaser can be behind the same signs, so find the cause before replacing it.
Fits
It is a direct-fit OE replacement for the 2005-2011 Volvo XC90 V8 4.4L and the 2007-2010 Volvo S80 V8 4.4L. This listing covers the right exhaust side only; the other side is a separate part.
Specifications
Fit and size
- Position: Exhaust (right)
- Quantity per vehicle: 1
- Length: 28 mm
- Width: 28 mm
- Height: 103.7 mm
- Shaft diameter: 18 mm (0.7 in)
Build and materials
- Housing material: Metal, plastic
- Activation type: Electromagnetic
- Voltage: 12 V
- Connector: 1 rectangular, female
- Terminals: 2 male blade terminals
- Condition: New
- Country of origin: Japan
In the box
One VVT solenoid; this side takes one. Gaskets and mounting hardware are not included, so plan on new mounting hardware.
Interchange: 35-1210
VV1216 · VVTA124 · VVS1872 · 30684283 · 36002694 · 360026940
This part cross-references / interchanges with the following part numbers:
VV1216, VVTA124, VVS1872, 35-1210, VVT316, 30684283, 36002694, 360026940
Frequently Asked Questions
Is this the VVT solenoid for the 2007-2010 Volvo S80 V8 4.4L?
Yes. Standard Ignition VVT316 fits the 2007-2010 Volvo S80 V8 4.4L. It is the right exhaust side, and that side takes one.
Does the Standard Ignition VVT316 come with gaskets or mounting hardware?
No. Standard Ignition VVT316 is one solenoid only; gaskets and mounting hardware are not included.
What voltage and connector does this VVT solenoid use?
It runs on 12 volts with electromagnetic activation. The connector is one rectangular female connector with two male blade terminals.
How can I tell if this VVT solenoid is going bad?
A rough idle, weak power or a check engine light can point to it. With the engine off and cool, look at the connector for damage or oil seepage; a shop can test the solenoid itself.
Can I use VVT316 in place of number 30684283?
Yes. 30684283 is listed as an interchange number for Standard Ignition VVT316.
