VVT Sprocket for 2010-2016 Volvo XC60 & More - Standard Ignition VVT564

$394.99

Vehicles this part fits

    Part number: VVT564
    UPC: 033086102085
    Condition: New
    Weight: 2.73 LBS
    Item Package Quantity: 1
    $394.99
    Adding to cart… The item has been added

    Have questions?

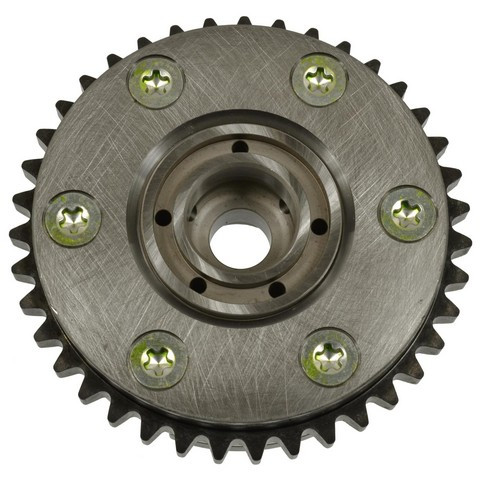

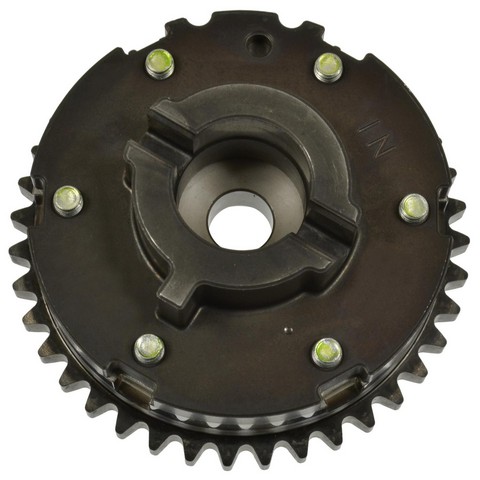

    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT564
    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT564
    $394.99
    $394.99

    Standard Ignition VVT564 VVT sprocket for the 2010-2015 Volvo XC60 6-cylinder 3.2L, the 2010-2016 XC60 6-cylinder 3.0L and other vehicles is an intake-position sprocket that supports accurate variable valve timing.

    • Designed to lower leakage and lash for noise-free operation
    • 39 teeth with tooth profiles shaped for quiet operation
    • Precision-machined for accurate variable valve timing
    • 100% end-of-line testing on every sprocket

    Quick facts

    • Part: Standard Ignition VVT564 VVT sprocket
    • Also called: engine variable valve timing vvt sprocket
    • Fits: 2010-2015 Volvo XC60 6-cylinder 3.2L, the 2010-2016 XC60 6-cylinder 3.0L and other vehicles
    • Position: Intake
    • Material: Metal
    • Condition: New

    Rough idle, noise from the timing area or poor drivability can be signs of a worn VVT sprocket, but these signs alone do not prove it is the problem; a stretched timing chain is another common cause. The 2010-2016 Volvo XC60 6-cylinder 3.0L takes one sprocket.

    Fits

    This is a direct-fit replacement for the 2011-2016 Volvo S60 6-cylinder 3.0L and the 2015-2016 Volvo V60 6-cylinder 3.0L, and the vehicles it fits include other Volvo models too. If your Volvo is not named here, look up its year and engine in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Position: Intake
    • Quantity per vehicle: 1
    • Outside diameter: 98.806 mm (3.89 in)
    • Inside diameter: 26.67 mm (1.05 in)
    • Lug hole diameter: 13.462 mm (0.53 in)
    • Thickness: 7.366 mm (0.29 in)
    • Tooth width: 7.366 mm (0.29 in)
    • Number of teeth: 39
    • Mounting hole quantity: 1

    Build and materials

    • Type: VVT sprocket, not adjustable
    • Material: Metal
    • Number of timing marks: 5
    • Keyway notch: No
    • Condition: New
    • Country of origin: Japan

    In the box

    One VVT sprocket. Installation bolts are not included, so plan on new ones.

    Interchange: 35-1362
    VV5069 · VVTB10173 · ECP1766 · 30758082 · 30777018

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    VV5069, VVTB10173, ECP1766, 35-1362, VVT564, 30758082, 30777018

    Frequently Asked Questions

    Does the Standard Ignition VVT564 fit a 2010-2015 Volvo XC60 6-cylinder 3.2L?

    Yes, Standard Ignition VVT564 fits the 2010-2015 Volvo XC60 6-cylinder 3.2L and the 2010-2016 XC60 6-cylinder 3.0L. For another Volvo, look up its year and engine in the "Vehicles it fits" section.

    Does the VVT564 sprocket come with an installation bolt?

    No. This listing is one VVT sprocket, and installation bolts are not included, so plan on new ones.

    How many teeth and what outside diameter does this VVT sprocket have?

    Standard Ignition VVT564 has 39 teeth and an outside diameter of 98.806 mm (3.89 in), with a 26.67 mm (1.05 in) inside diameter.

    Is this listing an engine variable valve timing vvt sprocket for the intake side?

    Yes. It is a VVT sprocket for the intake position, and it is not adjustable. It has 5 timing marks and a single mounting hole.

    Can a rough idle or ticking from the timing area mean a worn VVT sprocket?

    Yes, rough idle, ticking from the timing area or poor drivability can be signs of a worn VVT sprocket. A shop can test the variable valve timing system to confirm it.
