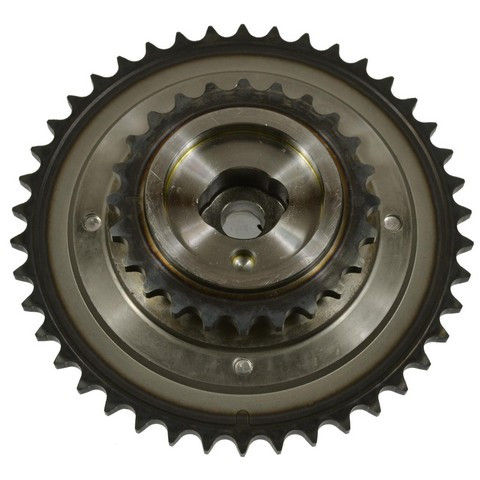

Standard Ignition VVT554 left VVT sprocket for the 2002-2004 Nissan Pathfinder V6 3.5L works with the engine's variable valve timing system on the left intake side. Its OE-matching tooth profile keeps the timing drive quiet.
- Designed to help restore engine horsepower and torque curves and help reduce emissions
- Designed to lower leakage and lash for noise-free operation
- Single-row sprocket with 42 teeth
- Precision-machined for accurate variable valve timing
- 100% end-of-line testing on every sprocket
Quick facts
- Part: Standard Ignition VVT554 VVT sprocket
- Also called: engine variable valve timing VVT sprocket
- Fits: 2002-2004 Nissan Pathfinder V6 3.5L
- Position: Intake (left)
- Material: Metal
- Condition: New
A rough idle, noise from the timing area or weak drivability can mean the sprocket is worn, though the timing chain or the VVT solenoid can be behind those signs as well, so find the cause before you replace anything.
Fits
It is a direct-fit OE replacement for the 2002-2004 Nissan Pathfinder V6 3.5L, which takes one for the left intake. Intake sprockets are normally replaced as a pair, so plan on the right side too; this listing is the left one, and the right side is a separate part.
Specifications
Fit and size
- Position: Intake (left)
- Quantity per application: 1
- Number of teeth: 42
- Outside diameter: 130.302 mm (5.13 in)
- Inside diameter: 20.828 mm (0.82 in)
- Lug hole diameter: 11.176 mm (0.44 in)
- Mounting hole quantity: 1
- Thickness: 5.08 mm (0.2 in)
Build and materials
- Material: Metal
- Number of rows: 1
- Adjustable: No
- Keyway notch: No
- Condition: New
- Country of origin: Japan
In the box
One VVT sprocket. Hardware is not included, so plan on new bolts rather than reusing the old ones.
Interchange: 35-1352
VV5059 · VVTC20032 · ECP1756 · 13025WL015
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
VV5059, VVTC20032, ECP1756, 13025WL015, 35-1352, VVT554
Frequently Asked Questions
Does the Standard Ignition VVT554 fit the 2002-2004 Nissan Pathfinder V6 3.5L?
Yes. The Standard Ignition VVT554 is the left VVT sprocket for the 2002-2004 Nissan Pathfinder V6 3.5L, which takes one on that side.
Does the VVT554 come with a mounting bolt?
No. The Standard Ignition VVT554 is the sprocket alone, with no hardware included, so plan on new bolts rather than reusing the old ones.
How many teeth does this VVT sprocket have, and how big is it?
It has 42 teeth in a single row, a 130.302 mm (5.13 in) outside diameter and a 20.828 mm (0.82 in) inside diameter.
Can a worn engine variable valve timing VVT sprocket cause a rough idle?
Yes, a worn sprocket can be one cause of a rough idle, along with noise from the timing area or weak drivability. Testing the valve timing system needs the engine running, so a shop can do that.
Does the Standard Ignition VVT554 replace VVTC20032?
Yes. VVTC20032 is one of the numbers the Standard Ignition VVT554 replaces; the other numbers it replaces are on the Interchange line.
