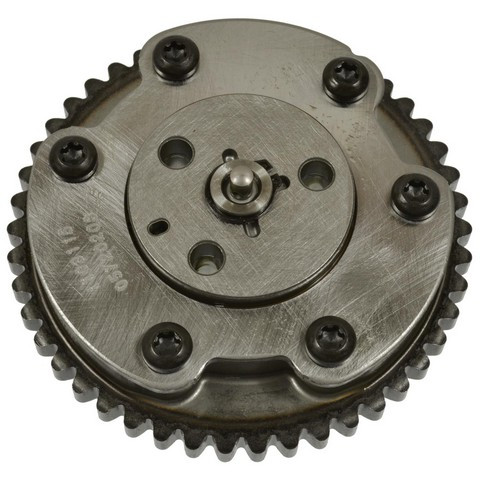

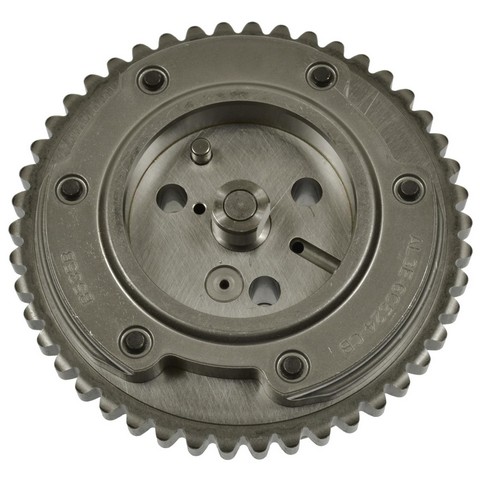

Standard Ignition VVT567 VVT sprocket for the 2010-2014 Ford F-150 V8 6.2L and other vehicles is the toothed sprocket in the engine's variable valve timing system.
- 48 teeth in a single row, profiled for quiet operation
- Precision-machined for accurate variable valve timing
- Designed to lower leakage and lash for noise-free operation
- Six mounting holes and a keyway notch
- 100% end-of-line testing on every sprocket
Quick facts
- Part: Standard Ignition VVT567 VVT sprocket
- Also called: engine variable valve timing VVT sprocket
- Fits: 2010-2014 Ford F-150 V8 6.2L and other vehicles
- Material: Metal
- Condition: New
A worn VVT sprocket can show up as a rough idle, engine noise or a check engine light. Before you replace the sprocket, rule out other causes of those signs, such as low oil level or a faulty VVT solenoid, since several parts can produce the same symptoms.
Fits
Ford trucks and vans that take it include the 2010-2014 F-150 V8 6.2L, the 2017-2019 E-350 Super Duty V8 6.2L and the 2017-2019 E-450 Super Duty V8 6.2L. The quantity depends on the vehicle: the 2010-2014 F-150 V8 6.2L takes two sprockets, and the 2017-2019 E-350 Super Duty V8 6.2L and E-450 Super Duty V8 6.2L take one each. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: 1 or 2, depending on the vehicle
- Number of teeth: 48
- Outside diameter: 4.5 in (114.3 mm)
- Inside diameter: 2.15 in (54.61 mm)
- Thickness: 0.32 in (8.128 mm)
- Mounting holes: 6
- Timing marks: 3
Build and materials
- Material: Metal
- Rows: 1
- Keyway notch: Yes
- Adjustable: No
- Condition: New
- Country of origin: China
In the box
One VVT sprocket. Mounting hardware is not included, so plan on new bolts.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Will Standard Ignition VVT567 fit a 2010-2014 Ford F-150 with the 6.2L V8?
Yes. Standard Ignition VVT567 fits the 2010-2014 Ford F-150 V8 6.2L, and the 2017-2019 Ford E-350 Super Duty V8 6.2L takes it as well.
Does this engine variable valve timing VVT sprocket come with an installation bolt?
No. Hardware is not included with this sprocket, so plan on new bolts for the job.
How many teeth and what outside diameter does the VVT567 sprocket have?
Standard Ignition VVT567 has 48 teeth in a single row and measures 4.5 in (114.3 mm) across, with a 2.15 in (54.61 mm) inside diameter.
Can a worn VVT sprocket cause a rough idle?
It can, since the sprocket takes part in setting valve timing; engine noise is another possible sign. A shop can test the timing system to find the cause.
Does the 2017-2019 Ford E-350 Super Duty V8 6.2L take one VVT567 or two?
One. The 2017-2019 E-350 Super Duty V8 6.2L takes one sprocket, while the 2010-2014 Ford F-150 V8 6.2L takes two.
