VVT Sprocket for 2015-2017 Ford F-150 & More - Standard Ignition VVT577

$121.99

Vehicles this part fits

    Part number: VVT577
    UPC: 033086190976
    Condition: New
    Weight: 1.70 LBS
    Item Package Quantity: 1
    $121.99
    Adding to cart… The item has been added

    Have questions?

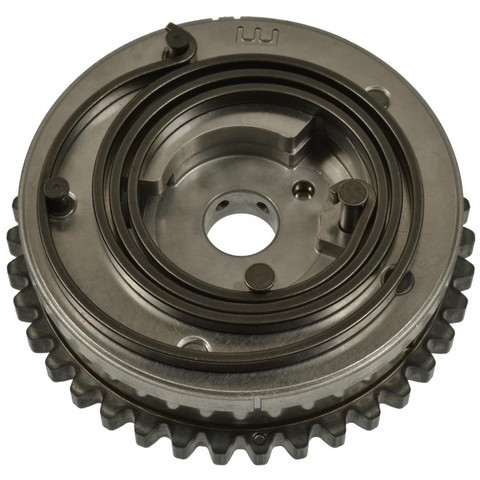

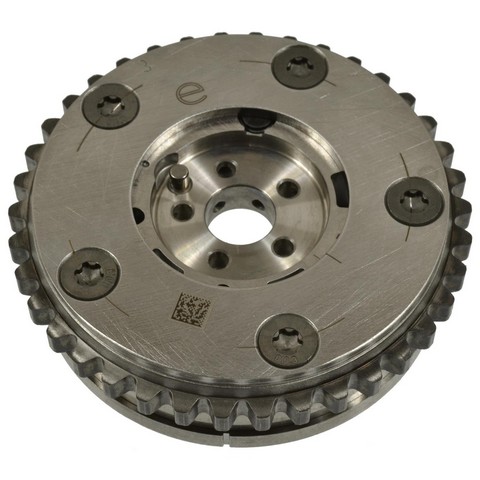

    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT577
    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT577
    $121.99
    $121.99

    Standard Ignition VVT577 VVT sprocket for the 2015-2017 Ford F-150 V6 2.7L and other vehicles works in the exhaust-side variable valve timing system. Catalogs also list it as an engine variable valve timing vvt sprocket.

    • Designed to lower leakage and lash, which helps quiet operation
    • Sprocket tooth profiles made for quiet running
    • Precision-machined for accurate variable valve timing
    • 100% end-of-line testing of each sprocket

    Quick facts

    • Part: Standard Ignition VVT577 VVT sprocket
    • Also called: engine variable valve timing vvt sprocket
    • Fits: 2015-2017 Ford F-150 V6 2.7L and other vehicles
    • Position: Exhaust
    • Material: Metal
    • Condition: New

    A rough idle, engine noise or a drivability complaint can be signs of a worn VVT sprocket. These signs alone do not prove the sprocket is the problem, since a stretched timing chain is another common source. The two sprockets are normally replaced together, and this listing is one.

    Fits

    Top fits include the 2015-2017 Ford F-150 V6 2.7L, the 2017 Ford Fusion V6 2.7L and the 2015-2017 Ford Edge V6 2.7L, each as a direct-fit OE replacement.

    Specifications

    Fit and size

    • Position: Exhaust
    • Quantity per vehicle: 2
    • Number of teeth: 40
    • Outside diameter: 3.62 in (91.948 mm)
    • Inside diameter: 1.67 in (42.418 mm)
    • Lug hole diameter: 0.54 in (13.716 mm)
    • Thickness: 0.24 in (6.096 mm)
    • Timing marks: 5
    • Keyway notch: Yes

    Build and materials

    • Material: Metal
    • Condition: New
    • Country of origin: United States

    In the box

    One VVT sprocket; the engine takes two. Hardware is not included, and removed bolts may not be reusable, so plan on new bolts.

    Interchange: 35-1375
    VV5082 · VVTB10181 · ECP1779 · FT4Z6C525A

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    VV5082, VVTB10181, ECP1779, FT4Z6C525A, 35-1375

    Frequently Asked Questions

    Is the Standard Ignition VVT577 VVT sprocket right for a 2017 Ford Fusion V6 2.7L?

    Yes, Standard Ignition VVT577 fits the 2017 Ford Fusion V6 2.7L and the 2015-2017 Ford F-150 V6 2.7L. For any other vehicle, look up your own year and engine in the "Vehicles it fits" section.

    Does the Standard Ignition VVT577 come with an installation bolt?

    No. Standard Ignition VVT577 is one VVT sprocket and hardware is not included, so plan on new bolts. The engine takes two sprockets in total.

    What size is this 40-tooth exhaust VVT sprocket?

    The outside diameter is 3.62 in (91.948 mm) and the inside diameter is 1.67 in (42.418 mm). It is 0.24 in (6.096 mm) thick with a 0.54 in (13.716 mm) lug hole.

    What can a worn VVT sprocket sound or feel like?

    A rough idle, engine noise or poor drivability can be signs of wear. A shop can test the variable valve timing system to confirm.

    Does the VVT577 replace number FT4Z6C525A?

    Yes, FT4Z6C525A is one of the interchange numbers this sprocket replaces.
