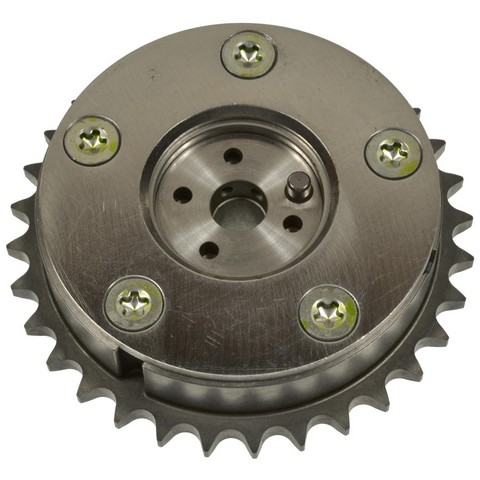

Standard Ignition VVT629 VVT sprocket for the 2005-2006 Buick LaCrosse V6 3.6L and other vehicles replaces the intake sprocket in the engine's variable valve timing system. It is a direct-fit OE replacement.
- 32-tooth profile designed for quiet operation
- Designed to lower leakage and lash for noise-free operation
- Precision-machined for accurate variable valve timing
- 100% end-of-line testing on every sprocket
Quick facts
- Part: Standard Ignition VVT629 VVT sprocket
- Also called: engine variable valve timing VVT sprocket
- Fits: 2005-2006 Buick LaCrosse V6 3.6L and other vehicles
- Position: Intake
- Material: Metal
- Condition: New
A worn or failing VVT sprocket can show up as a rough idle, engine noise or drivability complaints, and other faults can look alike. Reading any stored trouble codes first helps narrow down the cause, and a shop can do that and inspect the sprocket. This listing is one sprocket; these engines take two.
Fits
Fitment also includes the 2004-2006 Cadillac CTS V6 3.6L, the 2005-2006 CTS V6 2.8L and the 2004-2006 Buick Rendezvous V6 3.6L. Open the "Vehicles it fits" section to match your own model and engine.
Specifications
Fit and size
- Position: Intake
- Quantity per vehicle: 2
- Outside diameter: 100.33 mm (3.95 in)
- Inside diameter: 34.798 mm (1.37 in)
- Thickness: 5.334 mm (0.21 in)
- Lug hole diameter: 11.684 mm (0.46 in)
- Number of teeth: 32
- Mounting holes: 1
- Timing marks: 4
Build and materials
- Material: Metal
- Keyway notch: Yes
- Rows: 1
- Condition: New
- Country of origin: United States
In the box
One VVT sprocket. Mounting hardware is not included, so plan on new bolts, since the old ones may not be reusable.
Interchange: 35-1427
VV5134 · VVTB10218 · ECP1831 · 12583295 · 12588273
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
VV5134, VVTB10218, ECP1831, 12583295, 12588273, 35-1427
Frequently Asked Questions
Does the Standard Ignition VVT629 fit the 2004-2006 Cadillac CTS V6 3.6L?
Yes. Standard Ignition VVT629 fits the 2004-2006 Cadillac CTS V6 3.6L and the 2005-2006 CTS V6 2.8L. Open the "Vehicles it fits" section to check other models and engines.
Does the VVT629 sprocket come with an installation bolt?
No. Standard Ignition VVT629 is one VVT sprocket sold without mounting hardware, so plan on new bolts.
How many teeth and what outside diameter does this VVT sprocket have?
This sprocket has 32 teeth and a 100.33 mm (3.95 in) outside diameter. Its inside diameter is 34.798 mm (1.37 in).
Is this engine variable valve timing VVT sprocket the intake one?
Yes. This sprocket is listed for the intake position.
Is each of these VVT sprockets end-of-line tested?
Yes. Every sprocket goes through 100% end-of-line testing.
