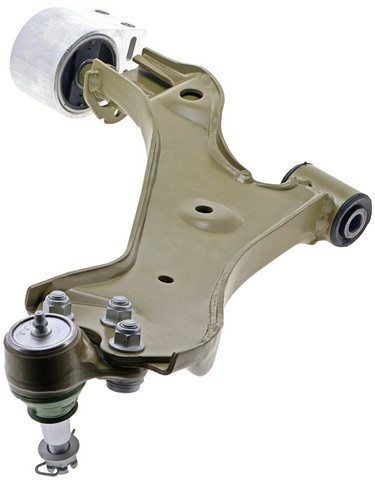

Mevotech TTX CTXMS501117 front left lower control arm with ball joint for the 2010-2017 Chevrolet Equinox and other vehicles holds the front left wheel in place as the suspension moves. This control arm and ball joint assembly comes with rubber bushings and a pre-greased, greaseable ball joint.
- Mevotech TTX line made for high-usage commercial and passenger vehicles, SUVs, fleets and working trucks
- Patented sintered metal bearings
- Patented sealing ring that locks the boot onto the ball joint housing to keep contaminants out
- Rubber bushings with knurling that secures the control arm bushing to the sub-frame
- Application-specific ball stud system with a larger sphere
- Repel-TEK surface treatment to resist rust build-up
Quick facts
- Part: Mevotech TTX CTXMS501117 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2010-2017 Chevrolet Equinox and other vehicles
- Position: Front left lower
- Material: Steel
- Condition: New
A worn lower control arm or ball joint can show up as a clunk over bumps, uneven tire wear or steering that wanders. A worn strut mount, sway bar link or wheel bearing can be behind these signs too, so find which part is at fault before you order.
Fits
It fits the 2010-2017 Chevrolet Equinox and the 2010-2017 GMC Terrain. This listing is one arm for the front left; the front right is a separate part, and the other side of that axle is normally done at the same time.
Specifications
Fit and size
- Position: front left lower
- Quantity per vehicle: 1 for this side
- Maximum width: 15.1 in
- Maximum length: 13.5 in
- Ball joint mounting type: bolt in
- Ball joint stud type: threaded
Build and materials
- Control arm material: steel
- Bushing material: rubber
- Bearing material: sintered metal
- Pre-greased and greaseable: yes
- Condition: new
- Country of origin: China
In the box

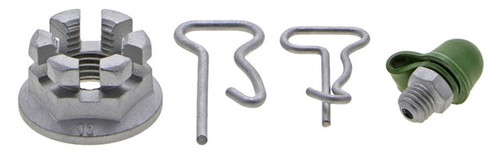

One front left lower control arm with its ball joint and rubber bushings, a slotted castle nut, a snap cotter pin and a 180 degree SAE grease fitting. The front left takes one arm, and the front right side is ordered separately.
Installation notes
- Labor Saver designs, tools and hardware are meant to make installation faster and easier.
- Pre-applied nylok thread adhesive keeps fasteners secure and vibration resistant.
Interchange: 810-425986B · 622.66040 · 623.62004 · 524-157 · A-2
19390897 · 20945779 · TC5705 · CB90053 · CB90053PR · CA16345 · GCA16345 · 20838304 · 25872723 · RK623489 · RK623583 · X07CJ1178 · CP5153
This part cross-references / interchanges with the following part numbers:
19390897, 810-425986B, 622.66040, 623.62004, 20945779, TC5705, 524-157, CB90053, CB90053PR, CA16345, GCA16345, 20838304, 25872723, RK623489, RK623583, CTXMS501117, A-2, X07CJ1178, CP5153
Frequently Asked Questions
Is this the 2010-2017 Chevy Equinox control arm for the front left lower position?
Yes. Mevotech TTX CTXMS501117 is the front left lower arm for the 2010-2017 Chevrolet Equinox; the front right lower arm is a separate part.
Is this a GMC Terrain control arm, and which side of the 2010-2017 GMC Terrain does it fit?
Yes. Mevotech TTX CTXMS501117 fits the 2010-2017 GMC Terrain in the front left lower position; the other side of that axle takes its own arm.
What comes with the Mevotech TTX control arm?
The arm has its ball joint and rubber bushings, and it comes with a slotted castle nut, a snap cotter pin and a 180 degree SAE grease fitting. This listing is one arm.
What is the Mevotech TTX lower control arm made of?
The arm is steel, the bushings are rubber and the bearings are sintered metal. Mevotech TTX CTXMS501117 also has a Repel-TEK surface treatment to resist rust build-up.
Can a clunk over bumps come from a worn control arm bushing or ball joint?
It can. Uneven front tire wear or wandering steering can also come from a worn bushing or ball joint, and a shop can inspect the bushings and test the joint for play.
