Rack and Pinion for 2003-2007 Toyota Land Cruiser & More - TERREPOWER N311-0187

$686.99

WARNING:California Proposition 65▾

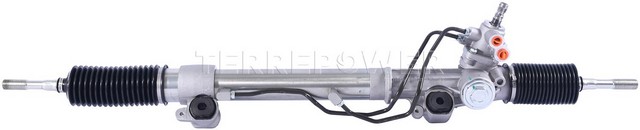

TERREPOWER formerly BBB Industries Rack and Pinion Assembly N311-0187

TERREPOWER formerly BBB Industries Rack and Pinion Assembly N311-0187 - view 2

TERREPOWER formerly BBB Industries Rack and Pinion Assembly N311-0187 - view 3

Part number: N311-0187

UPC: 060199034651

Condition: New

Weight: 26.20 LBS

Item Package Quantity: 1

$686.99

Current Stock: 5

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

TERREPOWER formerly BBB Industries Rack and Pinion Assembly P/N:N311-0187

$686.99

Description

TERREPOWER N311-0187 rack and pinion for the 2003-2007 Toyota Land Cruiser and other vehicles turns steering wheel rotation into the side-to-side movement that steers the wheels. This new hydraulic power steering unit, also called a rack and pinion assembly, adds fluid-pressure assist to that movement.

New hydraulic power steering rack and pinion
Inner tie rods are included
Bushings are included
Pressure port thread M16X1.50 and return port thread M17X1.50
3.313 total turns lock to lock

Quick facts

Part: TERREPOWER N311-0187 rack and pinion
Also called: rack and pinion assembly
Fits: 2003-2007 Toyota Land Cruiser and other vehicles
Condition: New

Heavy or loose steering, a groan when turning or fluid around the rack boots can mean the rack is worn, though a tired power steering pump or a leaking pressure hose can also be behind those signs. Find the cause first, then replace the rack if it is the culprit. Each vehicle takes one rack.

Fits

This rack and pinion fits the 2003-2007 Toyota Land Cruiser and the 2003-2007 Lexus LX470.

Specifications

Fit and size

Quantity per vehicle: 1
Steering input shaft diameter: 0.75 in (19.05 mm)
Input shaft length: 1.75 in (44.45 mm)
Distance between mounting holes: 16.94 in (430.276 mm), 2 mounting holes
End to end length: 36.375 in (923.93 mm)
Total turns lock to lock: 3.313
Pressure port thread: M16X1.50
Return port thread: M17X1.50

Build and materials

Type: Hydraulic
Condition: New
Inner tie rods: included
Outer tie rods: not included
Bushings: included
Country of origin: China

In the box

One rack and pinion with inner tie rods and bushings. Outer tie rods are not included.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

19321026

Buyer's Q&A

Frequently Asked Questions

Does this 2003-2007 Lexus LX470 rack and pinion also fit the 2003-2007 Toyota Land Cruiser?

Yes. TERREPOWER N311-0187 fits both the 2003-2007 Lexus LX470 and the 2003-2007 Toyota Land Cruiser.

Are the tie rods included with the TERREPOWER N311-0187 rack?

The TERREPOWER N311-0187 comes with inner tie rods and bushings. Outer tie rods are not included, so they are bought separately.

What thread sizes are the power steering ports on this rack and pinion?

The pressure port is M16X1.50 and the return port is M17X1.50.

How many turns lock to lock does this hydraulic rack and pinion have?

It has 3.313 total turns lock to lock, with a 0.75 in (19.05 mm) diameter input shaft that is 1.75 in (44.45 mm) long.

Is a groan when turning a sign this power steering rack is worn?

It can be. A groan, heavy or loose steering, or fluid wetness around the rack boots can all mean wear, and a shop can test the steering system to pinpoint it.
