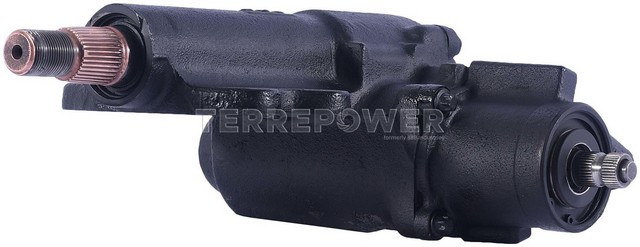

TERREPOWER 510-0104 steering gear for the 1989 Nissan Pathfinder and other vehicles is a remanufactured unit that turns steering wheel rotation into the motion that steers the wheels.
- Remanufactured power steering gear designed for dependability throughout the vehicle's service life
- Four turns of the steering wheel from lock to lock
- 36-spline input shaft and 36-spline output shaft
- Pressure port thread M14X1.50 and return port thread M16X1.50
- Four mounting holes
Quick facts
- Part: TERREPOWER 510-0104 steering gear
- Fits: 1989 Nissan Pathfinder and other vehicles
- Condition: Remanufactured
Heavy or loose steering, a fluid leak at the housing or a whine when turning can mean the steering gear is worn, though the power steering pump or a pressure hose can be behind the same signs, so find the cause before replacing the gear.
Fits
It fits the 1989 Nissan Pathfinder, the 1995-1997 Nissan Pickup and the 1986-1994 Nissan D21.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting holes: 4
- Total turns lock to lock: 4
- Pressure port thread size: M14X1.50
- Return port thread size: M16X1.50
- Input shaft diameter: 17.27 mm (0.68 in), 36 splines
- Output shaft diameter: 28.57 mm (1.125 in), 36 splines
Build and materials
- Type: power
- Condition: remanufactured
- Installation kit: included
- Country of origin: Mexico
In the box
One remanufactured steering gear with an installation kit. This listing holds one steering gear, and the vehicle takes one.
Interchange: 49200-11G00
19321458
Frequently Asked Questions
Is the TERREPOWER 510-0104 steering gear right for a 1995-1997 Nissan Pickup?
Yes. TERREPOWER 510-0104 is listed for the 1995-1997 Nissan Pickup, and this listing is a single steering gear.
Does this TERREPOWER steering gear come with an installation kit?
Yes. TERREPOWER 510-0104 comes with an installation kit, and the listing is one remanufactured steering gear.
What thread sizes are the ports on this steering gear?
The pressure port thread is M14X1.50 and the return port thread is M16X1.50.
How can I tell if a remanufactured power steering gear is worn?
Fluid wetness on the housing with the engine off, steering that feels loose or heavy, or a whine when turning can point to wear. A shop can test the gear.
How many splines are on the input and output shafts of the 510-0104?
Both shafts have 36 splines. The input shaft measures 17.27 mm (0.68 in) and the output shaft 28.57 mm (1.125 in).
