Steering Gear for 2003-2007 Hummer H2 - TERREPOWER N504-0104

Be the first to review this product
$971.99
WARNING:California Proposition 65▾
MPN: N504-0104
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert

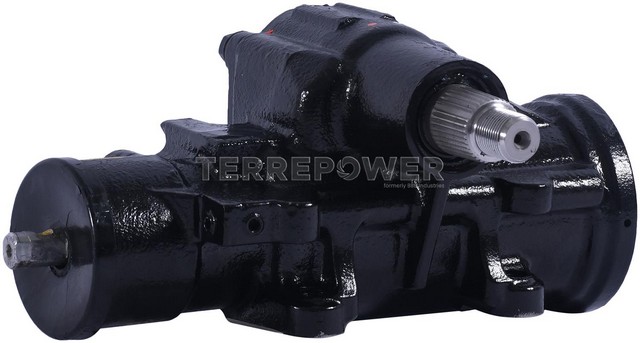

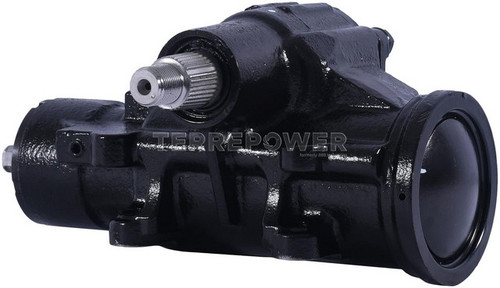

TERREPOWER formerly BBB Industries Steering Gear P/N:N504-0104
TERREPOWER formerly BBB Industries Steering Gear P/N:N504-0104
$971.99

TERREPOWER N504-0104 steering gear for the 2003-2007 Hummer H2 is a new power steering gear that carries steering wheel input to the wheels and uses power assist to reduce the effort of turning.

  • New power steering gear
  • Built for dependability and reliability throughout the vehicle's service life
  • Makes 2.938 turns lock to lock
  • Sold under the TERREPOWER name, formerly BBB Industries

Heavy or loose steering, a groan when turning, or fluid seeping around the housing can mean the steering gear is worn. A power steering pump, a hose, a tie rod or a low fluid level can be behind those signs too, so find the cause before you buy. This is a direct-fit replacement for the 2003-2007 Hummer H2, which takes one.

Specifications

Fit and size

  • Quantity per vehicle: 1
  • Total turns lock to lock: 2.938
  • Pressure port (inlet) thread: M18X1.50
  • Return port (outlet) thread: M16X1.50
  • Mounting holes: 3
  • Input shaft diameter: 16.51 mm (0.69 in)
  • Output shaft diameter: 31.75 mm (1.25 in)
  • Output shaft splines: 33

Build and materials

  • Type: power
  • Condition: new
  • Country of origin: China

In the box

One steering gear with an installation kit.

Interchange: 15166613 · 19321423

This part cross-references / interchanges with the following part numbers:

15166613, 19321423

Frequently Asked Questions

Does the TERREPOWER N504-0104 steering gear fit the 2003-2007 Hummer H2?

Yes, TERREPOWER N504-0104 is a direct-fit steering gear for the 2003-2007 Hummer H2, and the vehicle takes one.

Does the N504-0104 steering gear come with an installation kit?

Yes, TERREPOWER N504-0104 ships with an installation kit. The listing is for one steering gear.

What thread sizes do the fluid ports on this steering gear use?

The pressure (inlet) port is M18X1.50 and the return (outlet) port is M16X1.50.

What size is the output shaft on this power steering gear?

The output shaft is 31.75 mm (1.25 in) in diameter with 33 splines. The input shaft is 16.51 mm (0.69 in).

How can I tell if my power steering gear is leaking or worn?

Fluid seepage around the housing, steering that feels heavy or loose, or a groan when turning can all mean a worn gear. A shop can test it to confirm the cause.
