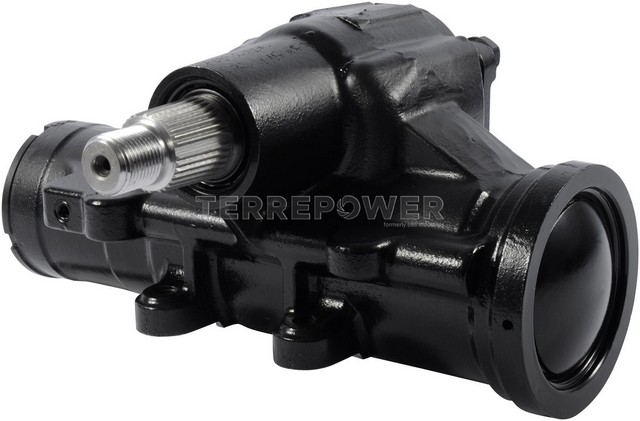

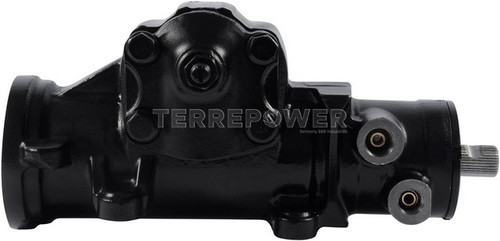

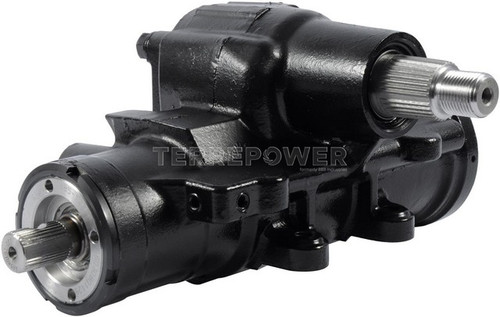

TERREPOWER N502-0112 steering gear for the 1972-1979 Jeep CJ5 and other vehicles is new, has power assist and turns steering wheel rotation into wheel movement. The input shaft turns with the steering column, and the output shaft moves the steering linkage.
- Total of 3.13 turns lock to lock
- 32 splines on both the input shaft and the output shaft
- Pressure port with 11/16X18 thread and return port with 5/8X18 thread
- Four mounting holes
- Installation kit included
Quick facts
- Part: TERREPOWER N502-0112 steering gear
- Fits: 1972-1979 Jeep CJ5 and other vehicles
- Condition: New
Excess play at the steering wheel, stiff steering or fluid seeping from the gear can mean the steering gear is worn. A tired power steering pump, a leaking hose or loose tie rods and linkage can give similar symptoms, so track down which one it is before you buy.
Fits
The vehicles it fits include the 1972-1979 Jeep CJ5, the 1976-1979 Jeep CJ7 and the 1972-1979 Jeep DJ5, and each takes one. If your Jeep is not named here, look up your year and model in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Total turns lock to lock: 3.13
- Mounting holes: 4
- Pressure port thread size: 11/16X18
- Return port thread size: 5/8X18
- Input shaft diameter: 18.29 mm (0.72 in), 32 splines
- Output shaft diameter: 31.75 mm (1.25 in), 32 splines
Build and materials
- Type: power
- Condition: new
- Installation kit: included
- Country of origin: China
In the box
One new steering gear with an installation kit.
Frequently Asked Questions
Does the TERREPOWER N502-0112 steering gear fit the 1976-1979 Jeep CJ7?
Yes. TERREPOWER N502-0112 fits the 1976-1979 Jeep CJ7 and the 1972-1979 Jeep CJ5, and each takes one. For other models, look in the "Vehicles it fits" section.
What comes with this TERREPOWER steering gear?
The listing is one new steering gear with an installation kit.
What thread sizes are the ports on the N502-0112 steering gear?
On the TERREPOWER N502-0112, the pressure port thread is 11/16X18 and the return port thread is 5/8X18.
Is play at the steering wheel a sign of a worn power steering gear?
Yes, it can be. Play at the wheel, stiff steering or fluid at the gear are signs a shop can inspect. Have it checked promptly instead of continuing to drive on it.
How many turns lock to lock does this steering gear have, and how many splines?
This gear turns 3.13 times lock to lock. The input and output shafts each have 32 splines, at 18.29 mm and 31.75 mm in diameter.
