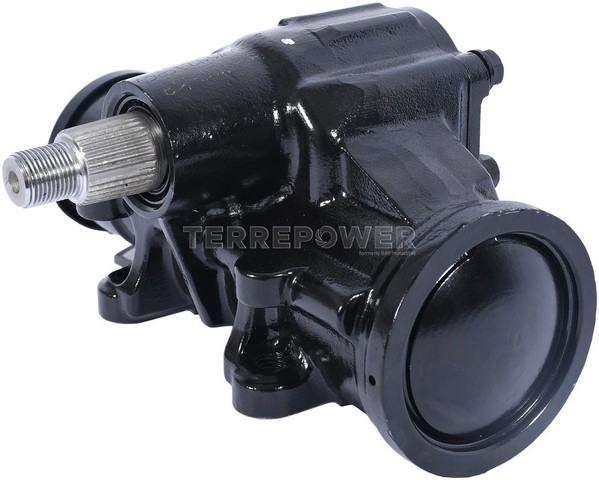

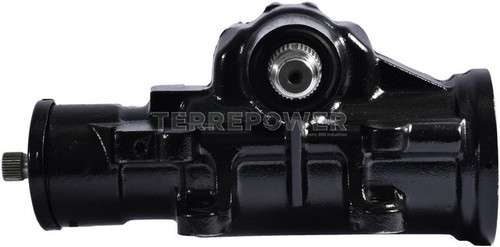

TERREPOWER N502-0117 steering gear for the 1994-1996 Dodge Ram 2500 and other vehicles turns steering input into wheel movement. This new power steering gear from TERREPOWER, formerly BBB Industries, is designed for dependability throughout the vehicle's service life.
- Power-assist design with 4.188 total turns lock to lock
- Pressure port thread M18X1.50 and return port thread M16X1.50
- Output shaft 31.75 mm (1.25 in) in diameter with 32 splines
- Input shaft 18.29 mm (0.72 in) in diameter with 26 splines
- Three mounting holes
Quick facts
- Part: TERREPOWER N502-0117 steering gear
- Fits: 1994-1996 Dodge Ram 2500 and other vehicles
- Condition: New
Heavy or loose steering, play at the wheel or fluid seeping around the gear can mean the gear is wearing out. Before you replace it, rule out worn tie rods, a leaking hose or a slipping pump belt; if the gear is the cause, this one replaces it. A vehicle has one steering gear, so this single listing covers it.
Fits
This steering gear fits the 1994-1996 Dodge Ram 2500 and the 1994-1996 Dodge Ram 3500.
Specifications
Fit and size
- Quantity per vehicle: 1
- Total turns lock to lock: 4.188
- Pressure port (inlet) thread: M18X1.50
- Return port (outlet) thread: M16X1.50
- Mounting holes: 3
- Output shaft diameter: 31.75 mm (1.25 in), 32 splines
- Input shaft diameter: 18.29 mm (0.72 in), 26 splines
Build and materials
- Type: Power
- Condition: New
- Installation kit: included
- Country of origin: China
In the box
One power steering gear and an installation kit.
Frequently Asked Questions
Is the TERREPOWER N502-0117 steering gear right for the 1994-1996 Dodge Ram 3500?
Yes. TERREPOWER N502-0117 fits the 1994-1996 Dodge Ram 3500 and the 1994-1996 Dodge Ram 2500.
Does the N502-0117 power steering gear come with an installation kit?
Yes. This TERREPOWER N502-0117 listing includes an installation kit along with the steering gear itself.
What are the port thread sizes on this power steering gear?
The pressure port (inlet) is M18X1.50 and the return port (outlet) is M16X1.50.
What shaft sizes and spline counts does the N502-0117 steering gear have?
The output shaft is 31.75 mm (1.25 in) with 32 splines. The input shaft is 18.29 mm (0.72 in) with 26 splines.
How many turns lock to lock does this TERREPOWER steering gear have?
This steering gear has 4.188 total turns lock to lock and three mounting holes.
