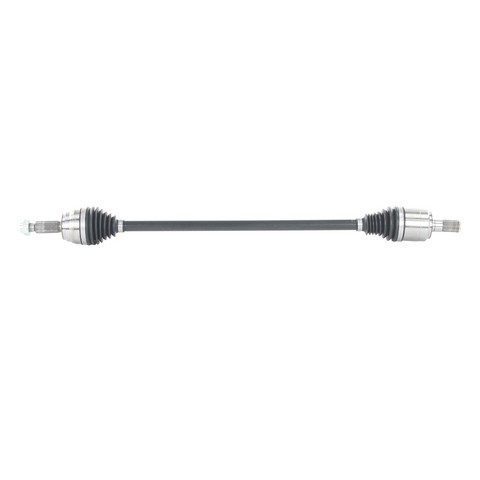

TrakMotive HY-86038 front right CV axle shaft for the 2017-2023 Hyundai Elantra and other vehicles carries drive torque to the front right wheel. The shaft flexes at both joints so the wheel can steer and follow the suspension over bumps.
A clicking or popping noise in turns, vibration under acceleration, or grease flung from a split boot can mean the axle is worn. Clicking can also come from other steering or suspension parts, so before ordering, look at the boots for splits or grease spray where you can see them with the engine off, and let a shop test the joints.
It fits the 2017-2023 Hyundai Elantra and the 2019-2021 Kia Forte. This listing is the front right axle, and each of those cars takes one on that side. The front left is a separate part, ordered on its own, and the two sides are often replaced together.
Fit and size
Build and materials
One front right CV axle shaft. The axle nut and the ABS tone ring are not included.
Interchange: NCV37102 · NCV75128 · NCV75138
This part cross-references / interchanges with the following part numbers:
Is the TrakMotive HY-86038 CV axle shaft the right one for a 2019-2021 Kia Forte?
Yes, TrakMotive HY-86038 is the front right axle for the 2019-2021 Kia Forte and the 2017-2023 Hyundai Elantra, and the front left side is a separate part.
Does this TrakMotive CV axle come with the axle nut?
No, the axle nut and the ABS tone ring are not included; the nut thread is M22x1.5 with a 32 mm hex.
How long is the TrakMotive CV axle shaft compressed and extended?
TrakMotive HY-86038 measures 955 mm (37.63 in) compressed and 997 mm (39.25 in) extended, with 27 splines at the inboard end and 27 at the outboard end.
Is a split boot a reason to replace a front right CV axle shaft?
A split boot or grease thrown around the joint can mean the joint is wearing, so have the axle inspected or replaced promptly rather than driving on it. Clicking in turns can come from other parts, so a shop can test it.
Does NCV75128 cross over to this axle?
Yes, NCV75128 is an interchange number for TrakMotive HY-86038, along with NCV37102 and NCV75138.
