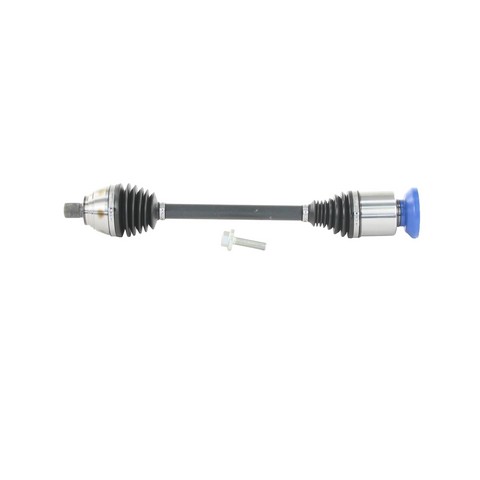

TrakMotive VW-86038 front right CV axle shaft for the 2018-2021 Volkswagen Atlas carries drive torque from the transmission to the front right wheel. This TrakMotive CV axle has a joint at each end, so it keeps driving the wheel as the suspension moves and the wheel steers.
- Thermoplastic boots cover both the inboard and outboard joints
- Female inboard joint with 40 splines
- Outboard joint with 38 splines that takes an M16x1.5 axle bolt
- Overall length of 657 mm compressed and 712 mm extended
Quick facts
- Part: TrakMotive VW-86038 CV axle shaft
- Fits: 2018-2021 Volkswagen Atlas
- Position: Front right
A clicking noise in turns, grease on the inside of the wheel from a torn boot, or vibration when you accelerate can mean a CV axle shaft is worn. Before you replace the CV axle shaft, rule out a worn wheel bearing, a loose suspension part or a failed engine mount, since each of these can make a similar noise or vibration.
Fits
It is a direct-fit replacement for the 2018-2021 Volkswagen Atlas, which takes one CV axle shaft on the front right. This listing is the right side of the front axle; the front left shaft is a separate part and is normally replaced at the same time.
Specifications
Fit and size
- Position: Front right
- Quantity: 1 for the front right
- Overall compressed length: 657 mm (25.875 in)
- Overall extended length: 712 mm (28 in)
- Splines: 40 inboard, 38 outboard
- Axle bolt: M16x1.5 thread, 86 mm long, 27 mm hex
Build and materials
- Inboard joint type: Female
- Outboard joint type: Audi Style Spline Bolt
- Shaft connection: Spline, inboard and outboard
- Boot material: Thermoplastic, inboard and outboard
- ABS tone ring: not included
- Country of origin: China
In the box
One front right CV axle shaft. The axle nut is not included, so plan on a new one.
Interchange: NCV72189
Frequently Asked Questions
Is the TrakMotive VW-86038 the front right CV axle shaft for the 2018-2021 Volkswagen Atlas?
Yes. The TrakMotive VW-86038 fits the front right of the 2018-2021 Volkswagen Atlas, and the front left is a separate part.
Does this TrakMotive CV axle shaft come with an axle nut or ABS tone ring?
No. This front right CV axle shaft comes without the axle nut or an ABS tone ring, so plan on a new axle nut.
How many splines does the VW-86038 have at each joint?
The TrakMotive VW-86038 has 40 splines at its female inboard joint and 38 splines at its outboard joint.
What size axle bolt does this front right CV axle shaft take?
This CV axle shaft's outboard joint takes an M16x1.5 axle bolt that is 86 mm long with a 27 mm hex.
How can I tell if a thermoplastic boot on this CV axle shaft has failed?
A torn or cracked boot on this CV axle shaft, or grease flung around the inside of the wheel, can mean the joint is losing grease and wearing.
