Front Left CV Axle Shaft for 2021-2023 Kia Sorento - TrakMotive KA-86038

$157.99

TrakMotive CV Axle Shaft KA-86038 - view 2

TrakMotive CV Axle Shaft KA-86038 - view 3

TrakMotive CV Axle Shaft KA-86038 - view 4

TrakMotive CV Axle Shaft KA-86038 - view 5

TrakMotive CV Axle Shaft KA-86038 - view 6

Part number: KA-86038

UPC: 840140520309

Condition: New

Weight: 16.30 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$157.99

Current Stock: 17

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

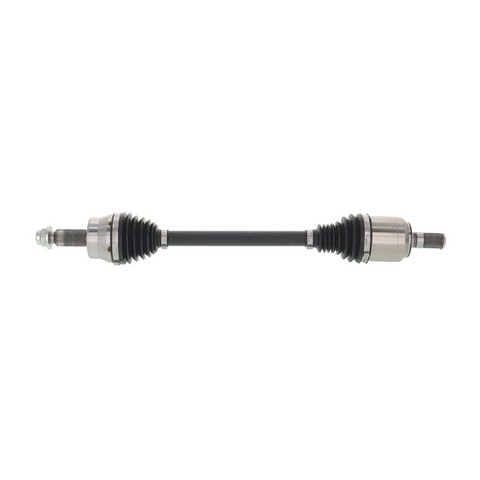

TrakMotive CV Axle Shaft P/N:KA-86038

$157.99

Description

TrakMotive KA-86038 front left CV axle shaft for the 2021-2023 Kia Sorento sends drive power from the powertrain to the wheel. The TrakMotive CV axle flexes with the suspension and steering so the wheel keeps turning.

Male inboard joint and conventional outboard joint, both with splined shaft connections
Thermoplastic boots on both the inboard and outboard joints
Axle nut included, with M24x1.5 thread and stake locking

Quick facts

Part: TrakMotive KA-86038 CV axle shaft
Fits: 2021-2023 Kia Sorento
Position: Front left
Condition: New

A torn boot with grease thrown around it, a clicking noise in turns or vibration while accelerating can mean the axle is wearing out. Vibration alone does not prove the axle is the problem, since an out-of-balance tire is another common cause.

Fits

It fits the 2021-2023 Kia Sorento, which takes one shaft on each side of the front axle. This listing is the front left only; the front right shaft on that axle is a separate part and is normally replaced at the same time.

Specifications

Fit and size

Position: Front left
Quantity per application: 1
Overall compressed length: 698 mm (27.5 in)
Overall extended length: 746 mm (29.38 in)
Inboard splines: 27
Outboard splines: 30
Axle nut hex size: 32 mm (1.25 in)
Axle nut thread size: M24x1.5

Build and materials

Boot material: thermoplastic (inboard and outboard joints)
Axle nut locking type: stake
ABS tone ring: not included
Condition: New
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft and one axle nut. The ABS tone ring is not included.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

KA-86038

Buyer's Q&A

Frequently Asked Questions

Will the TrakMotive KA-86038 front left CV axle shaft fit a 2021-2023 Kia Sorento?

Yes. TrakMotive KA-86038 is the front left axle shaft for the 2021-2023 Kia Sorento. The front right side is a separate part.

Does this front left axle shaft come with the axle nut?

Yes. The axle nut is included, with an M24x1.5 thread and a 32 mm hex size. The ABS tone ring is not included.

How many splines are on each end of this axle shaft?

The inboard end has 27 splines and the outboard end has 30. The inboard joint is male and the outboard joint is conventional.

What are the signs of a worn front CV axle?

Signs include a torn boot with grease thrown around it, a clicking noise in turns or vibration under acceleration. A shop can inspect the joints to confirm.

How long is this TrakMotive CV axle shaft compressed and extended?

The TrakMotive KA-86038 measures 698 mm (27.5 in) compressed and 746 mm (29.38 in) extended.
