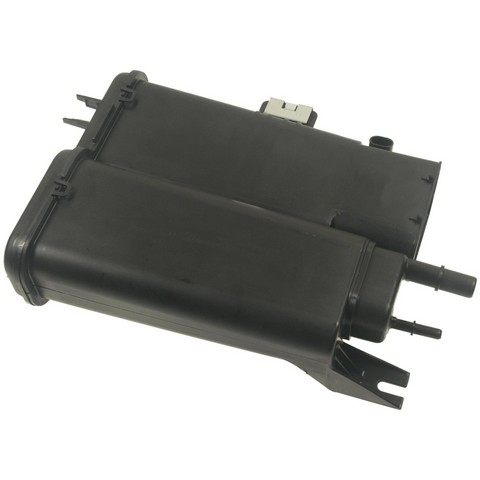

Standard Ignition CP3200 vapor canister for the 2006-2007 Cadillac CTS V6 2.8L or V8 6.0L, the 2006-2011 CTS V6 3.6L, the 2009-2011 CTS V8 6.2L, the 2010-2011 CTS V6 3.0L and other vehicles holds fuel vapor from the tank in charcoal filter media. It is part of the evaporative emission system, which routes stored vapor to the engine instead of letting it vent.
A fuel smell or an evaporative emission warning light can mean the canister is leaking or clogged. If the canister is the cause, this one replaces it. A cracked hose or a damaged connector could be the real culprit, so look the system over with the engine off and cool before you replace anything. A shop can run the evaporative tests that need the engine running.
It is a direct-fit OE replacement with an OE-matched connector and terminals for the 2006-2007 Cadillac CTS V6 2.8L or V8 6.0L, the 2006-2011 CTS V6 3.6L, the 2009-2011 CTS V8 6.2L and the 2010-2011 CTS V6 3.0L. It also fits the 2006-2009 Cadillac STS V8 4.4L, the 2006-2010 STS V8 4.6L and the 2006-2011 STS V6 3.6L. Standard Ignition engineered it for higher-mileage GM vehicles.
Fit and size
Build and materials
One vapor canister with mounting hardware and a filter element. This listing holds one canister, and one is all the car takes.
Interchange: 2-70064
CP1340 · VC4242 · 19177356 · 19259325
This part cross-references / interchanges with the following part numbers:
Will the Standard Ignition CP3200 fit a 2010-2011 Cadillac CTS V6 3.0L?
Yes. Standard Ignition CP3200 is listed for the 2010-2011 Cadillac CTS V6 3.0L as a direct-fit vapor canister with a matched connector and terminals.
Does this Standard Ignition vapor canister come with mounting hardware?
Yes. Standard Ignition CP3200 ships with mounting hardware and a filter element. The listing is one canister.
What hose sizes does this vapor canister have?
This vapor canister has three hose connectors sized 3/8, 5/8 and 5/8 inch. The canister is 10.25 inches long.
Can a fuel smell or a cracked housing mean the vapor canister needs replacing?
They can. A fuel smell, a visible crack in the housing or an evaporative emission warning light may point to the canister, but other evap parts can also trigger them. A shop can test the system.
Does the CP3200 vapor canister replace number 19177356?
Yes. 19177356 is one of the numbers this canister replaces, along with 2-70064, CP1340, VC4242 and 19259325.
