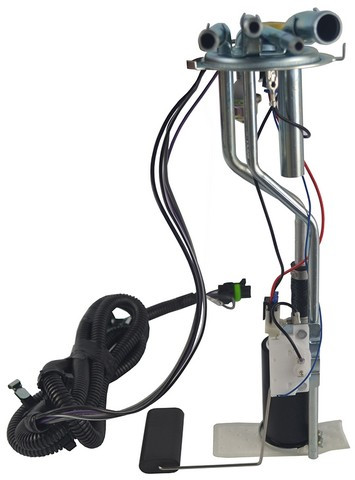

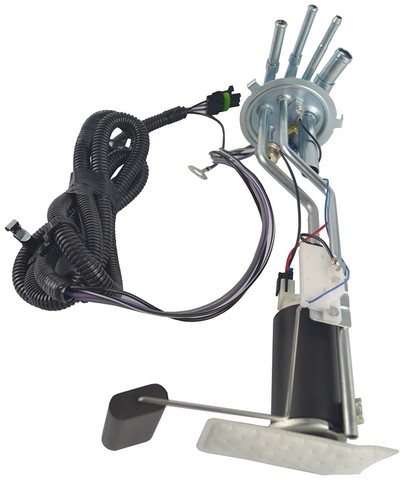

Agility Autoparts Fuel Pump and Sender Assembly P/N:4011030
$96.99
(You save)
Keep fuel moving from the tank to the engine with the Agility Autoparts Fuel Pump and Sender Assembly 4011030. It's a direct-fit replacement for the 1987-1990 Chevrolet Astro (L4-2.5L), 1987-1994 Chevrolet Astro (V6-4.3L), 1987-1990 GMC Safari (L4-2.5L), and 1987-1994 GMC Safari (V6-4.3L), combining the in-tank fuel pump with the fuel-level sender in one unit.
Complete drop-in unit: Ships as a drop-in replacement with the necessary components included, so it installs right out of the box.
Tested for reliability: Each assembly undergoes performance and reliability testing for pressure characteristics, flow rates, electrostatic discharge, and 100% leak testing.
Built to spec: Engineered in a highly automated, dust-free environment and designed to match or surpass OEM specifications.
Key specs: Strainer inlet, butt-flare outlet with a 0.375 in outlet outside diameter, up to 55.5 U.S. gallons per hour flow, up to 25 PSI, 12 volts DC.
Signs the original pump or sender may need replacing include hard starting, stalling, loss of power under load, or an erratic/inaccurate fuel gauge. Country of origin: China.
It fits the 1987-1990 Chevrolet Astro (L4-2.5L), 1987-1994 Chevrolet Astro (V6-4.3L), 1987-1990 GMC Safari (L4-2.5L), and 1987-1994 GMC Safari (V6-4.3L). Confirm your engine in the Buyer's Guide tab.
Is this a complete assembly?
Yes. It combines the fuel pump and the fuel-level sender in one unit and ships as a drop-in replacement with the necessary components included, ready to install out of the box.
What are the pump's flow and pressure ratings?
It has a maximum flow rating of 55.5 U.S. gallons per hour, a maximum pressure of 25 PSI, and operates on 12 volts DC.
What inlet and outlet does it use?
The inlet uses a strainer, and the outlet is a butt-flare type with a 0.375 in outlet outside diameter.
What are signs my fuel pump and sender may need replacing?
Common signs include hard starting, stalling, loss of power under load, and an erratic or inaccurate fuel gauge. Diagnose the cause before replacing, since these symptoms can have other sources.
