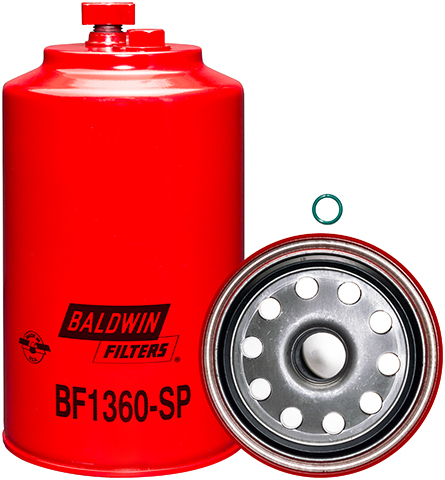

Baldwin BF1360-SP fuel water separator filter for the 2004-2010 Blue Bird Vision School Bus 6-cylinder 7.2L, the 2007-2016 Vision School Bus 6-cylinder 6.7L and other vehicles and equipment separates water from the fuel before it reaches the engine.
- Spin-on fuel/water separator with a drain
- Sensor port with a 1/2-20 thread
- Integral post seal
Quick facts
- Part: Baldwin BF1360-SP fuel water separator filter
- Fits: the 2004-2010 Blue Bird Vision School Bus 6-cylinder 7.2L, the 2007-2016 Vision School Bus 6-cylinder 6.7L and other vehicles and equipment
- Condition: New
A clogged or water-loaded separator can show up as hard starting, a loss of power or rough running. Before you replace this filter, rule out other fuel-system faults, since those signs have more than one source. The fitment calls for one separator per engine.
Fits
This fuel water separator filter also fits the 1999-2010 Blue Bird All American RE 6-cylinder 7.2L, the 2003-2004 All American RE 6-cylinder 5.9L and the 2003-2014 All American RE 6-cylinder 8.3L. If your engine is not named here, look it up in the "Vehicles it fits" section on this page.
Specifications
Fit and size
- Quantity per application: 1
- Outside diameter: 108.7 mm (4 9/32 in)
- Height: 206.4 mm (8 1/8 in)
- Thread: 1, 14 per inch
- Sensor port thread: 1/2-20
Build and materials
- Type: spin-on with drain and sensor port
- Seal: integral post seal
- Condition: New
- Country of origin: United States
In the box
One fuel water separator filter, one O-ring and one internal gasket.
Installation notes
- The furnished O-ring must be installed on the post for the seal.
Interchange: Racor R90S
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
86788, 3754770002, 4570920001, FFP551065, P551065, P551851, P551854, FS20028, 4ZRV7, FF1280-SP, S2340-11700, 7147701, SN909002, LFF8063, 4570920001KZ, A4570920001, 3788, RK444Z5002, R60S, R90S, SFC-7912-02, SK3494, SFR90S2FW, 33788
Frequently Asked Questions
Is the Baldwin BF1360-SP right for the 2007-2016 Blue Bird Vision School Bus 6-cylinder 6.7L?
Yes. The Baldwin BF1360-SP fuel water separator filter fits the 2007-2016 Blue Bird Vision School Bus 6-cylinder 6.7L. Other engines and vehicles are in the "Vehicles it fits" section.
Does this fuel water separator filter come with an O-ring and gasket?
Yes. It comes with one O-ring and one internal gasket, and the O-ring goes on the post to make the seal.
What size is the Baldwin BF1360-SP fuel water separator?
The Baldwin BF1360-SP measures 108.7 mm (4 9/32 in) in outside diameter and 206.4 mm (8 1/8 in) in height, with a 1/2-20 sensor port thread.
How do I know if a fuel water separator filter like the BF1360-SP is clogged?
Hard starting, a loss of power or rough running can be signs of a restricted or water-filled separator. A shop can run fuel-system tests, since some of them need the engine running.
Does the Baldwin BF1360-SP interchange with Racor R90S?
Yes. Racor R90S is on the interchange list for the Baldwin BF1360-SP fuel water separator filter.
