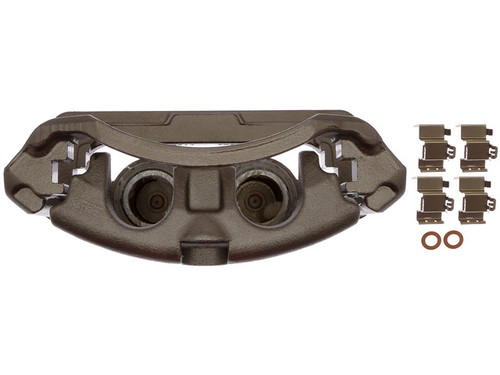

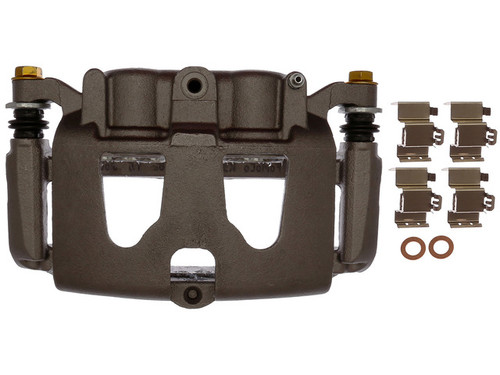

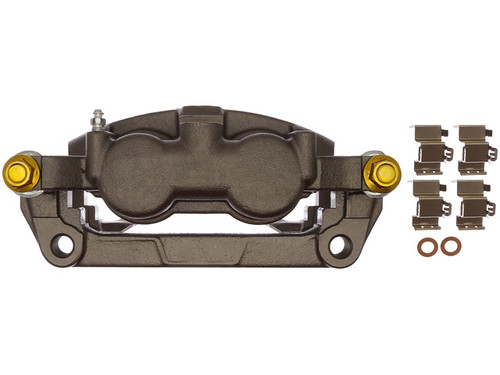

Raybestos Brakes FRC12595 rear right brake caliper for the 2013-2022 Ford F-250 Super Duty and other vehicles presses the brake pads against the rotor to slow the wheel. This remanufactured semi-loaded caliper and bracket assembly replaces a worn or leaking unit at the rear right wheel.
- Raybestos R-Line non-plated remanufactured caliper with all new rubber and sealing components
- New seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings; castings, guide pins and brackets are inspected before reuse
- Silicone boots for heavy duty applications, where applicable
- 100% pressure tested, with each caliper tested for braking performance
- EPDM70 rubber components for heat resistance and durability
Quick facts
- Part: Raybestos Brakes FRC12595 brake caliper
- Also called: disc brake caliper
- Fits: 2013-2022 Ford F-250 Super Duty and other vehicles
- Position: Rear right
- Material: Cast iron
- Condition: Remanufactured
A worn or sticking disc brake caliper can show up as the truck pulling to one side, uneven pad wear or brake fluid around the caliper or its boot. Before you replace the caliper, rule out worn pads, a damaged brake hose and a seized guide pin, since those can produce similar symptoms.
Fits
It fits the 2013-2022 Ford F-250 Super Duty and the 2013-2022 Ford F-350 Super Duty. Calipers are normally replaced as a left-right pair, and this listing is one caliper for the rear right; the rear left is a separate part. The 2013-2022 Ford F-250 Super Duty takes one caliper at the rear right.
Specifications
Fit and size
- Position: rear right
- Quantity: 1 for the rear right
- Piston diameter: 45 mm (1.772 in)
- Bleeder screw thread: 3/8-24
- Bracket mounting hole size: 16 mm
- Bracket mounting hole thread pitch: 2 mm
Build and materials
- Type: floating, semi-loaded caliper and bracket assembly
- Casting material: cast iron
- Condition: remanufactured
- Country of origin: Mexico
In the box
One remanufactured semi-loaded brake caliper and bracket assembly.
Interchange: 18-B5473 · 18-P5473 · 141.65554 · 141.65555 · 142.65554 · 99-17991B · 99-18023A · 14-3426 · 11-23165-1
SC3362 · BRCF254 · BRCF382 · DC3Z2553A · HC3Z2553A
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
18-B5473, 18-P5473, 141.65554, 141.65555, 142.65554, SC3362, BRCF254, BRCF382, DC3Z2553A, HC3Z2553A, 99-17991B, 99-18023A, 14-3426, 11-23165-1
Frequently Asked Questions
Is this a brake caliper for the 2013-2022 Ford F-250 Super Duty rear right wheel?
Yes. Raybestos Brakes FRC12595 is the rear right caliper for the 2013-2022 Ford F-250 Super Duty. The rear left wheel takes its own separate caliper.
What comes with this remanufactured Raybestos R-Line caliper?
One remanufactured semi-loaded caliper and bracket assembly for the rear right wheel.
What size is the piston on this rear caliper?
Raybestos Brakes FRC12595 has a 45 mm (1.772 in) piston and a 3/8-24 bleeder screw thread. It is a floating caliper with a cast iron casting.
How can I tell if a rear caliper is leaking or sticking?
Look for brake fluid at the caliper or boot with the engine off, or notice a burning smell or pulling to one side. Have suspected brake trouble checked promptly and do not keep driving on it.
Can this caliper replace part number 18-B5473?
Yes. 18-B5473 is one of the numbers Raybestos Brakes FRC12595 interchanges with. This listing covers the rear right position only.
