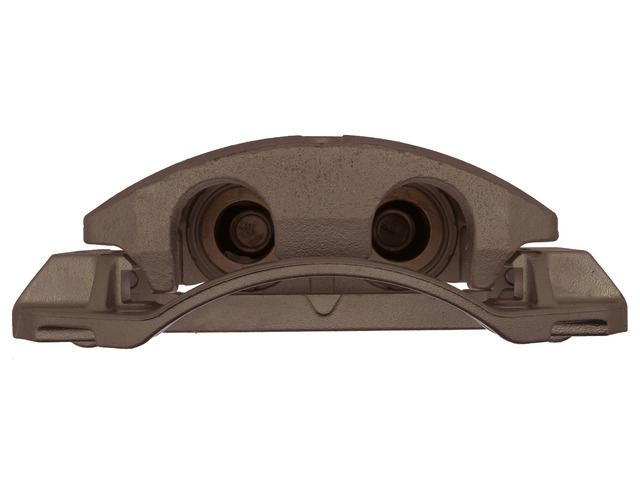

Raybestos Brakes FRC12463 front brake caliper for the 2016-2019 Chevrolet Suburban and other vehicles clamps the pads against the rotor to slow the wheel. This remanufactured disc brake caliper comes as a semi-loaded caliper and bracket assembly, with materials matching OE specifications.
- R-Line non-plated remanufactured caliper with all new rubber and sealing components
- Castings, guide pins and brackets inspected before they are reused
- Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings replaced with new parts for leak-free operation
- Silicone boots for heavy duty applications, where applicable
- 100% pressure tested
- EPDM70 rubber components for heat resistance and durability
Quick facts
- Part: Raybestos Brakes FRC12463 brake caliper
- Also called: disc brake caliper
- Fits: 2016-2019 Chevrolet Suburban and other vehicles
- Position: Front right, front left
- Material: Cast iron
- Condition: Remanufactured
A sticking or leaking caliper can show up as the vehicle pulling to one side, a wheel that drags, or brake fluid around the caliper. If the caliper is the cause, this assembly replaces it. Before buying, look for wet fluid at the caliper and hose with the engine off and cool, and compare pad wear side to side during a brake service, because worn pads or a hose can produce similar symptoms.
Fits
It also fits the 2011-2019 Chevrolet Silverado 2500 HD and the 2011-2019 Chevrolet Silverado 3500 HD, plus other vehicles. If yours is not named here, find its year and model in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: front right, front left
- Quantity per application: 1
- Bleeder screw thread: M10x1
Build and materials
- Type: semi-loaded caliper and bracket assembly
- Casting material: cast iron
- Condition: remanufactured
- Country of origin: Mexico
In the box
One caliper and bracket assembly. This listing holds one caliper for either front side; the other front side takes its own, and the two are normally replaced together.
Interchange: 18-B5302 · 99-17443A · 18-P5302 · 141.66055 · 142.66055
SC3132
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
18-B5302, 99-17443A, 18-P5302, 141.66055, 142.66055, SC3132
Frequently Asked Questions
Is FRC12463 the right Suburban brake caliper for a 2016-2019 Chevrolet Suburban?
Yes. Raybestos Brakes FRC12463 fits the 2016-2019 Chevrolet Suburban, on either the front left or the front right.
Is this a brake caliper for the 2011-2019 Chevrolet Silverado 2500 HD?
Yes. This front caliper and bracket assembly fits the 2011-2019 Chevrolet Silverado 2500 HD, on either front side.
What is the bleeder screw thread on the Raybestos Brakes FRC12463?
The bleeder screw thread is M10x1. The caliper casting is cast iron.
Can a sticking front caliper make a vehicle pull to one side?
It can, since a stuck caliper may brake one wheel harder than the other, but uneven pads or a hose can cause pulling too. A shop can test the brakes.
Does the Raybestos R-Line FRC12463 come with the bracket?
Yes. Raybestos Brakes FRC12463 is a semi-loaded caliper and bracket assembly, remanufactured with all new rubber and sealing components.
