Rear Brake Caliper for 1998-2005 GMC Jimmy & More - Raybestos FRC10994

$116.99

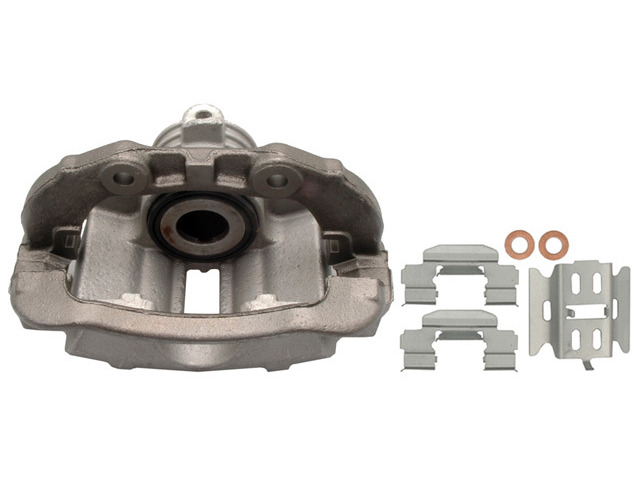

Raybestos Brakes Disc Brake Caliper FRC10994

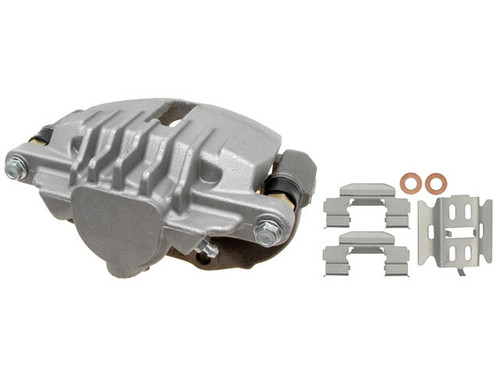

Raybestos Brakes Disc Brake Caliper FRC10994 - view 2

Part number: FRC10994

UPC: 753497955307

Condition: New

Weight: 7.50 LBS

Item Package Quantity: 1

$116.99

Current Stock: 10

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Raybestos Brakes Disc Brake Caliper P/N:FRC10994

$116.99

Description

Raybestos Brakes FRC10994 rear brake caliper for the 1998-2005 GMC Jimmy and other vehicles presses the pads against the rotor to slow the wheel. This remanufactured semi-loaded disc brake caliper comes with its bracket as one assembly.

Raybestos R-Line non-plated remanufactured caliper with all new rubber and sealing components
Castings, guide pins and brackets are inspected before they are reused
New seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings for leak-free operation
EPDM70 rubber components for heat resistance and durability
100% pressure tested

Quick facts

Part: Raybestos Brakes FRC10994 brake caliper
Also called: disc brake caliper
Fits: 1998-2005 GMC Jimmy and other vehicles
Position: Rear right, rear left
Material: Aluminum
Condition: Remanufactured

A rear caliper that is worn or sticking can show up as the vehicle pulling to one side, uneven pad wear or brake fluid around the wheel. A collapsed brake hose or worn pads can be behind the same signs, so find the cause before replacing the caliper.

Fits

The vehicles it fits include the 1998-2005 GMC Jimmy, the 1997-2005 Chevrolet Blazer and the 1998-2004 Chevrolet S10. This listing is one caliper and each rear wheel takes one, so both sides are normally replaced together. If your vehicle is not named here, look it up in the "Vehicles it fits" section.

Specifications

Fit and size

Position: rear right, rear left
Quantity per application: 1
Caliper piston diameter: 48 mm (1.89 in)
Bleeder screw thread: M10x1

Build and materials

Type: semi-loaded caliper and bracket assembly, floating caliper
Casting material: aluminum
Finish: non-plated
Condition: remanufactured
Country of origin: Mexico

Interchange: 18-B4713 · 15-14371 · 99-17289B · 18-4713XB · 18-B4659 · 18-P4713 · 141.66501 · 141.66502 · 142.66501 · 99-17289A · 10-4371S · 14-4371
SC0192

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

18-B4713, 15-14371, 99-17289B, 18-4713XB, 18-B4659, 18-P4713, 141.66501, 141.66502, 142.66501, SC0192, 99-17289A, 10-4371S, 14-4371

Buyer's Q&A

Frequently Asked Questions

Is the Raybestos Brakes FRC10994 an S10 brake caliper for a 1998-2004 Chevrolet S10?

Yes. Raybestos Brakes FRC10994 fits the 1998-2004 Chevrolet S10 at the rear, left or right, and each side takes one caliper.

Can I use this as a Chevrolet Blazer brake caliper on a 1997-2005 Chevrolet Blazer?

Yes. This rear caliper fits the 1997-2005 Chevrolet Blazer, one per side. For other vehicles, look in the "Vehicles it fits" section.

What is the piston diameter on the Raybestos Brakes FRC10994?

The piston diameter is 48 mm (1.89 in). The bleeder screw thread is M10x1, and the caliper is a floating type.

Which parts are new in this remanufactured R-Line caliper?

The seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are new. Castings, guide pins and brackets are inspected before they are reused.

Is this rear caliper pressure tested?

Yes. Every Raybestos R-Line caliper is 100% pressure tested, and its rubber components are EPDM70.
