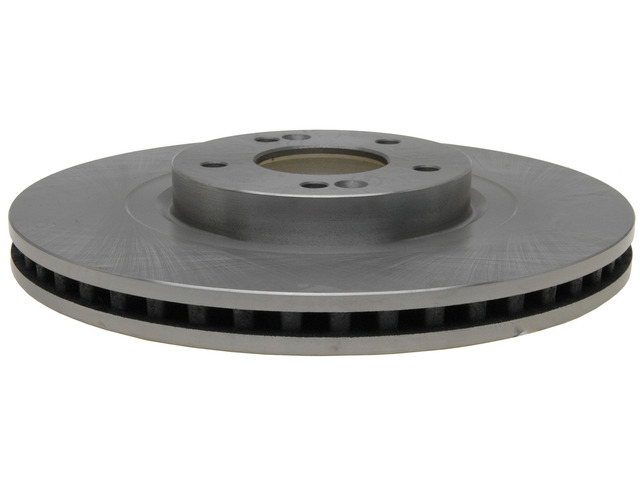

Built for dependable everyday braking, the Raybestos R-Line Brake Rotor 981010R is a vented front disc brake rotor developed from OE samples. It fits many vehicles, among them the 2014-2020 Kia Sorento, 2012-2019 Hyundai Santa Fe and 2013-2019 Hyundai Santa Fe XL, all engines. See the "Vehicles it fits" section for the full list.
Raybestos engineers its R-Line rotors and drums for everyday driving conditions, with a focus on dependability, safety and performance.
- OE fit, form and function: Developed from OE samples and made with G3000-qualified material for dependable braking.
- SAE standard: Meets the SAE standard for tensile strength, which supports the rotor's structural integrity.
- Low initial lateral runout and thickness variation: Small lateral runout and thickness variation are designed to help reduce pedal pulsation and brake noise and to extend pad life.
- Mill balanced edges: Each rotor is mill balanced and 100 percent validated. This helps minimize thickness variation, reduce vibration and give smoother stops.
Specifications: The rotor is cast iron, vented and conventional (not drum-in-hat), with a smooth, non-directional braking surface. Outside diameter is 320 mm (12.598 in) and inside diameter is 204.9 mm (8.067 in). Nominal thickness is 28.1 mm (1.106 in) and discard thickness is 26 mm (1.024 in). Overall height is 49.3 mm (1.941 in). It has five 12.6 mm (0.496 in) mounting bolt holes on a 114.3 mm (4.5 in) bolt circle and a 69.1 mm (2.72 in) center hole. An ABS tone ring is not included.
This rotor is sold individually. The listed applications use two front rotors, so we recommend replacing both sides together as a matched pair for even, balanced braking. Signs a rotor may need replacing include pedal pulsation, vibration while braking, deep scoring, or wear down to the discard thickness. Country of origin: China.
Frequently Asked Questions
I'm replacing the brake pads and rotors on my 2014-2020 Kia Sorento. Does this rotor fit?
Yes. It's listed as a front rotor for the 2014-2020 Kia Sorento with all engines. Brake pads are not included and are sold separately.
Is this brake rotor listed for both the 2012-2019 Hyundai Santa Fe and the 2013-2019 Hyundai Santa Fe XL?
Yes. It's listed for the 2012-2019 Hyundai Santa Fe and the 2013-2019 Hyundai Santa Fe XL, all engines. See the "Vehicles it fits" section for other listed vehicles.
How many rotors do I need to order?
This rotor is sold individually, and the listed applications use two front rotors. We recommend replacing both sides together as a matched pair for even, balanced braking.
What are the thickness specs for rotor 981010R?
Nominal thickness is 28.1 mm (1.106 in) and discard thickness is 26 mm (1.024 in). A rotor worn to the discard thickness should be replaced.
What design features does the Raybestos R-Line rotor have?
It is a vented, cast iron rotor made with G3000-qualified material. It is mill balanced, 100 percent validated, and meets the SAE standard for tensile strength.
