Rear Brake Rotor for 2013-2019 Ford Explorer & More - Raybestos 680983R

$120.99

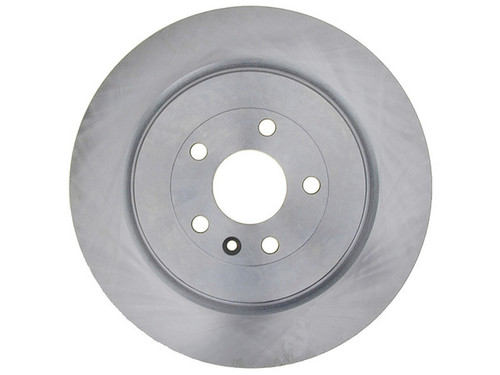

Raybestos Brakes Disc Brake Rotor 680983R
Raybestos Brakes Disc Brake Rotor 680983R - view 2
Raybestos Brakes Disc Brake Rotor 680983R - view 3
Raybestos Brakes Disc Brake Rotor 680983R
Raybestos Brakes Disc Brake Rotor 680983R - view 2
Raybestos Brakes Disc Brake Rotor 680983R - view 3

Vehicles this part fits
    Part number: 680983R
    UPC: 887213026375
    Sold individually
    $120.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Raybestos Brakes Disc Brake Rotor P/N:680983R
    Raybestos Brakes Disc Brake Rotor P/N:680983R
    $120.99
    $120.99

    Raybestos Brakes 680983R rear brake rotor for the 2013-2019 Ford Explorer and other vehicles is the disc the rear pads clamp against to slow the wheel. Developed from OE samples, it is made for OE fit, form and function.

    • Raybestos R-Line series, engineered for everyday driving conditions
    • Made with G3000-qualified material
    • Meets the SAE standard for tensile strength
    • Low initial lateral runout and thickness variation for less pedal pulsation, less brake noise and longer pad life
    • Mill balanced edges, 100 percent validated, to minimize thickness variation and vibration

    Quick facts

    • Part: Raybestos Brakes 680983R brake rotor
    • Also called: disc brake rotor
    • Fits: 2013-2019 Ford Explorer and other vehicles
    • Position: Rear
    • Material: Cast iron
    • Condition: New

    A pulsing brake pedal, vibration under braking or grooves in the rotor face can mean the rotor is worn, though worn rear pads or a sticking caliper can be behind the same signs. Plan to replace both rear rotors together; this listing is a single rotor.

    Fits

    The 2013-2019 Ford Explorer, 2013-2019 Ford Taurus and 2019-2020 Ford Police Responder Hybrid are among the vehicles this rear brake rotor fits, and each takes two. Other Ford and Lincoln models that take this rotor are on the Buyer's Guide tab; look yours up there.

    Specifications

    Fit and size

    • Position: Rear
    • Quantity per vehicle: 2
    • Outside diameter: 344.9 mm (13.579 in)
    • Inside diameter: 243.85 mm (9.6 in)
    • Center hole diameter: 68.05 mm (2.68 in)
    • Bolt circle: 114.3 mm (4.5 in), 5 lug holes
    • Mounting bolt hole diameter: 14.55 mm (0.573 in)
    • Overall height: 38.7 mm (1.524 in)
    • Nominal thickness: 19 mm (0.748 in)
    • Discard thickness: 17.5 mm (0.689 in)

    Build and materials

    • Type: Vented, conventional
    • Surface: Smooth, non-directional
    • Material: Cast iron
    • ABS tone ring: not included
    • Condition: New
    • Country of origin: China

    Frequently Asked Questions

    Is 680983R the right 2013-2019 Ford Explorer brake rotor for the rear axle?

    What is the minimum thickness of Raybestos Brakes 680983R?

    The discard thickness is 17.5 mm (0.689 in), against a nominal thickness of 19 mm (0.748 in). A rotor measured at or below 17.5 mm is due for replacement.

    What are the bolt circle and center hole size of this rear rotor?

    This rear rotor has 5 lug holes on a 114.3 mm (4.5 in) bolt circle, a 68.05 mm (2.68 in) center hole and a 344.9 mm (13.579 in) outside diameter.

    Is this disc brake rotor directional?

    No. It has a smooth, non-directional surface and is a vented rotor, so there is no rotation direction to match.

    Does Raybestos Brakes 680983R come with an ABS tone ring?

    No. The ABS tone ring is not included with Raybestos Brakes 680983R.
