Front Left CV Axle for 2007-2012 Nissan Sentra - CARDONE New 66-6258

$135.99

CARDONE New CV Axle Assembly 66-6258 - view 2

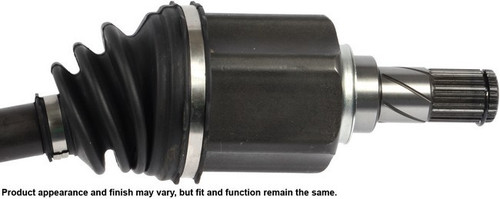

CARDONE New CV Axle Assembly 66-6258 - view 3

$135.99

Current Stock: 3

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Part number: 66-6258

UPC: 884548012448

CARDONE New CV Axle Assembly P/N:66-6258

$135.99

Description

CARDONE New 66-6258 front left CV axle for the 2007-2012 Nissan Sentra carries engine torque from the transaxle to the front left wheel. The CV axle assembly comes with its CV joints and is engineered around the reasons original axles typically fail.

Neoprene boots with additional bellows where needed to resist bellow stress and cracking
Each axle shaft is individually verified for straightness
Boot clamps are pneumatically crimped to seal the boot to the housing
Grease withstands high-temperature and high-torque demands
Precision-rolled splines for fit in the hub and transmission, and precision-rolled threads for the axle nut
Transmission seal diameter precision-machined after heat treatment for the correct surface finish

Quick facts

Part: CARDONE New 66-6258 CV axle
Also called: CV axle assembly
Fits: 2007-2012 Nissan Sentra
Position: Front left
Material: Steel shaft, neoprene boots
Condition: New

Clicking when you turn under power, a thump or vibration on acceleration, or grease thrown onto the chassis can mean an axle joint or boot is wearing out. With the engine off, look the boot over for tears and flung grease, and find the cause before replacing anything. This listing is one axle for the front left; the front right is a separate part, and both sides are normally replaced together.

Fits

This axle fits the 2007-2012 Nissan Sentra.

Specifications

Fit and size

Position: front left
Quantity per vehicle: 1
Shaft diameter: 27 mm (1.063 in)
Compressed length: 679.45 mm (26.75 in)
Inboard joint: splined, 27 splines
Outboard joint: splined, 29 splines
Axle nut: hex, M24x1.5 thread, 32 mm (1.26 in) socket

Build and materials

Shaft material: steel
Boot material: neoprene, 5 ribs
CV joints: included
ABS tone ring: not included
Condition: new
Country of origin: China

In the box

One complete axle, an axle nut and an instruction sheet. This listing holds one axle, and the front left takes one.

Installation notes

A new axle retaining nut is supplied; a prevailing torque lock nut is never reused, so discard the old one.
Tighten the nut with a torque wrench to the manufacturer's specifications, never with an impact wrench.
Install new transaxle seals when replacing axles.
Remove and install one axle at a time, and do not let an axle hang unsupported.

Interchange: 39101ET200

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

39101ET200

Buyer's Q&A

Frequently Asked Questions

Does the CARDONE New 66-6258 CV axle fit the 2007-2012 Nissan Sentra?

Yes. CARDONE New 66-6258 is the front left CV axle for the 2007-2012 Nissan Sentra. The front right side is a separate part.

Does this front left CV axle come with a new axle nut?

Yes. An axle nut is supplied with the axle, along with an instruction sheet. The ABS tone ring is not included.

What size is the axle nut on the CARDONE New 66-6258 axle?

The hex axle nut has an M24x1.5 thread and takes a 32 mm (1.26 in) socket. It is 23.7 mm (0.933 in) long.

What should I do with the old locking nut when installing this CV axle?

Discard it and use the new axle nut supplied, because a prevailing torque lock nut is never reused. Tighten the new nut with a torque wrench to the manufacturer's specifications, not an impact wrench.

Are the boots on this front left CV axle neoprene?

Yes. The boots are neoprene, with additional bellows where needed to resist bellow stress and cracking. The shaft is steel.
