A1 CARDONE 78-5966 engine control module (ecm) for the 1995 Ford Ranger V6 3.0L and other vehicles is a remanufactured module that controls the engine.
- Reverse engineering of the failed original shows why it failed, so design weaknesses can be identified and corrected
- Critical components are re-soldered or replaced to help prevent intermittent failures
- Every module is 100% computer tested, using automated equipment or a bench test depending on the application
- On-car vehicle validation checks durability and performance
- Remanufacturing reduces the energy and raw material needed to make a new part by 80%
Quick facts
- Part: A1 CARDONE 78-5966 engine control module (ecm)
- Fits: the 1995 Ford Ranger V6 3.0L and other vehicles
- Condition: Remanufactured
A check engine light that stays on after a reset, the engine shutting off for no reason or intermittent starting can mean the module has failed. Poor grounds or power, a bad wiring harness and short-circuited solenoids or relays can be behind these signs too, so find what made the original fail before buying a replacement.
Fits
This module fits the 1995 Ford Ranger V6 3.0L and the 1995 Mazda B3000 V6 3.0L, and each takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Length: 8 in
- Width: 6.1 in (154.94 mm)
- Height: 1.6 in

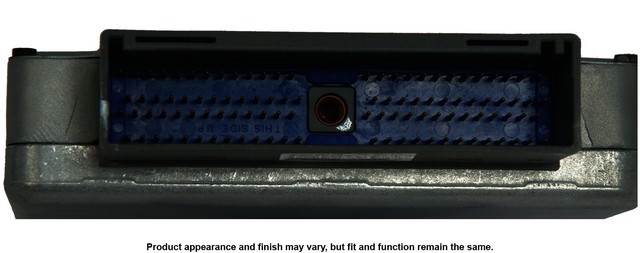

- Terminals: 104 male pin terminals
- Connector: 1 rectangular, female
Build and materials
- Condition: Remanufactured
- Grade: Standard Replacement
- Flashable: Yes
- Removable PROM: No
- Country of origin: Mexico
In the box
One engine control module and one instruction sheet. Mounting hardware is not included, and the old hardware may not be reusable, so plan on new fasteners.
Installation notes
- Make sure the module is properly flash programmed for the vehicle.
- A vehicle with the Ford passive anti-theft system needs an on-car relearn.
- Some older Ford applications have a calibration module that must be transferred to the replacement module.
Interchange: F57Z12A650AKA · F5PF12A650PA · F5PF12A650PB · F57F12A650AKA · ZZNA18881
This part cross-references / interchanges with the following part numbers:
F57Z12A650AKA, F5PF12A650PA, F5PF12A650PB, F57F12A650AKA, ZZNA18881
Frequently Asked Questions
Is this A1 CARDONE ecm the right one for the 1995 Ford Ranger V6 3.0L?
Yes. A1 CARDONE 78-5966 fits the 1995 Ford Ranger V6 3.0L, and it also fits the 1995 Mazda B3000 V6 3.0L.
Does the 78-5966 module come with mounting hardware?
No. Mounting hardware is not included; the package holds the engine control module and an instruction sheet.
Is this engine control module flashable?
Yes. The 78-5966 is flashable and has no removable PROM, so it needs to be properly flash programmed for the vehicle.
Could a check engine light that stays on after a reset point to the engine control module?
A check engine light that stays on can be one sign of a failing module, as can the engine shutting off for no reason or intermittent starting. A shop can test the module and its circuits.
Do I need a PATS relearn with the 78-5966 on a Ford that has the passive anti-theft system?
Yes, if the vehicle has the Ford passive anti-theft system, the A1 CARDONE 78-5966 needs an on-car relearn. Not every Ford requires a PATS reset.
