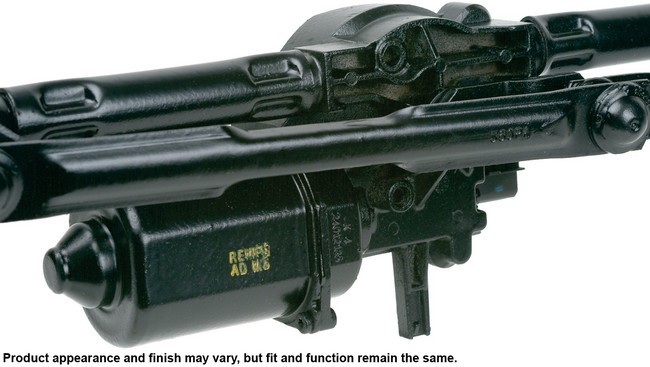

A1 CARDONE 40-1050L front windshield wiper motor for the 2002 Chevrolet Trailblazer and other vehicles drives the wiper arms across the glass. This remanufactured A1 CARDONE windshield wiper motor is re-engineered, built and tested to match O.E. performance.
- Armature, field, bearing and parking switch or pulse board are each tested or gauged
- Finished motor is tested for each of its functions on the vehicle
- Every motor bearing is re-impregnated or replaced as needed
- Output gear is lubricated for load capacity and long life
- Weak solder points are 100% reflowed to extend life expectancy
- Motor magnets are 100% recharged for performance and reliability
Quick facts
- Part: A1 CARDONE 40-1050L windshield wiper motor
- Fits: 2002 Chevrolet Trailblazer and other vehicles
- Position: Front
- Material: Cast aluminum
- Condition: Remanufactured
Wipers that stop partway across the glass, run slowly or do not move can mean the motor is worn, though a defective washer pump or a poor wiring ground can also produce them, so rule those out before replacing the motor.
Fits
This front windshield wiper motor, one per vehicle, fits the 2002 Chevrolet Trailblazer, the 2003-2004 Isuzu Ascender and the 2002 Chevrolet Trailblazer EXT, and each takes one. Don't see your vehicle? Look up your year and model in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: front
- Quantity per vehicle: 1
- Mounting type: direct bolt, 3 mounting holes
- Terminals: 8 male blade terminals
- Wiper speeds: 2
Build and materials
- Material: cast aluminum
- Condition: remanufactured
- Electronics: circuit board
- Country of origin: Mexico
In the box
One windshield wiper motor and one instruction sheet. The wiring harness and washer pump are not included.
Interchange: 8124876890
Frequently Asked Questions
Is this windshield wiper motor for a 2002 Chevy Trailblazer?
Yes. A1 CARDONE 40-1050L fits the 2002 Chevrolet Trailblazer and the 2003-2004 Isuzu Ascender, and each takes one.
Does the A1 CARDONE 40-1050L come with a wiring harness or washer pump?
No. This A1 CARDONE 40-1050L comes as one windshield wiper motor with an instruction sheet; the wiring harness and washer pump are not included.
How many speeds does this front windshield wiper motor have?
It has two wiper speeds. The motor has eight male blade terminals and three mounting holes.
How is this remanufactured windshield wiper motor tested?
The armature, field, bearing and parking switch or pulse board are each tested or gauged, then the finished motor is tested for each of its functions on the vehicle.
Does 8124876890 interchange with the A1 CARDONE 40-1050L?
Yes. 8124876890 is listed as an interchange number for this A1 CARDONE 40-1050L front windshield wiper motor.
