Harmonic Balancer for 1989-1993 Dodge D250 & More - PowerBond by Dayco PB1644N

$496.99

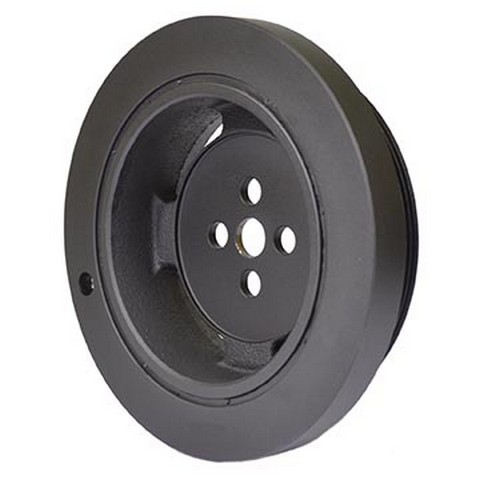

PowerBond by Dayco Engine Harmonic Balancer PB1644N

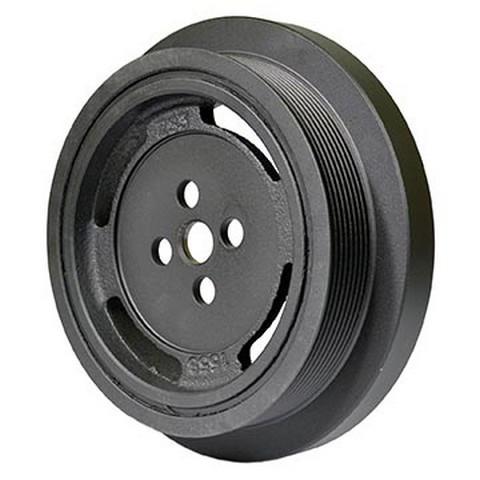

PowerBond by Dayco Engine Harmonic Balancer PB1644N - view 2

Part number: PB1644N

EAN: 9317010012581

Condition: New

Weight: 11.00 LBS

Item Package Quantity: 1

$496.99

Current Stock: 6

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Dayco Engine Harmonic Balancer P/N:PB1644N

$496.99

Description

PowerBond by Dayco PB1644N harmonic balancer for the 1989-1993 Dodge D250 6-cylinder 5.9L and other vehicles damps crankshaft vibration and carries an integrated serpentine belt pulley. It sits on the front end of the crankshaft.

Cast iron outer ring
One integrated serpentine pulley, 173.00 mm (6.812 in) outside diameter
Neutral counterweight balance, with no counterweight
Overall width of 61.00 mm (2.402 in) with four bolt holes

Quick facts

Part: PowerBond by Dayco PB1644N harmonic balancer
Also called: engine harmonic balancer
Fits: 1989-1993 Dodge D250 6-cylinder 5.9L and other vehicles
Material: Cast iron (outer ring)
Condition: New

Cracks in the outer ring, belt noise or vibration from the front of the engine can all mean a balancer is wearing out. A worn serpentine belt, a weak tensioner or a bad accessory bearing can be behind the same signs, so find the cause before buying a balancer.

Fits

As an integrated-pulley harmonic balancer, it also fits the 1989-1993 Dodge D350 6-cylinder 5.9L and the 1989-1993 Dodge W250 6-cylinder 5.9L, and each takes one. This listing is a single balancer.

Specifications

Fit and size

Quantity per vehicle: 1
Overall outside diameter: 209.00 mm (8.229 in)
Pulley outside diameter: 173.00 mm (6.812 in)
Crank bore: 19.07 mm (0.751 in)
Overall width: 61.00 mm (2.402 in)
Ring width: 53.50 mm (2.107 in)
Bolt holes: 4

Build and materials

Outer ring material: cast iron
Integrated pulleys: 1, serpentine
Counterweight balance: neutral, no counterweight
Timing marks: none
Crank trigger/exciter plate: none
Condition: New

In the box

One harmonic balancer. The woodruff key, hardware and installation instructions are not included, so plan on new bolts rather than reusing the old ones.

Interchange: 594-789

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

NA, 594-789

Buyer's Q&A

Frequently Asked Questions

Does the PowerBond by Dayco PB1644N fit a 1989-1993 Dodge D350 with the 6-cylinder 5.9L?

Yes. The PowerBond by Dayco PB1644N fits the 1989-1993 Dodge D350 6-cylinder 5.9L, and each vehicle takes one. If your car is not named here, check it in the "Vehicles it fits" section.

Does this harmonic balancer come with bolts or a woodruff key?

No. This listing is one harmonic balancer; the woodruff key and hardware are not included, and neither are installation instructions.

What size is the pulley on the PB1644N balancer?

The PowerBond by Dayco PB1644N has one integrated serpentine pulley, 173.00 mm (6.812 in) in outside diameter, on a balancer with a 209.00 mm (8.229 in) overall outside diameter.

How can I tell if an engine harmonic balancer is going bad?

With the engine off and cool, look for cracks in the outer ring. Belt noise or vibration from the front of the engine can also be signs, and a shop can test it further.

Does the PB1644N have timing marks or a crank trigger plate?

No. The PB1644N has no timing marks and no crank trigger or exciter plate. Its counterweight balance is neutral, with no counterweight.
