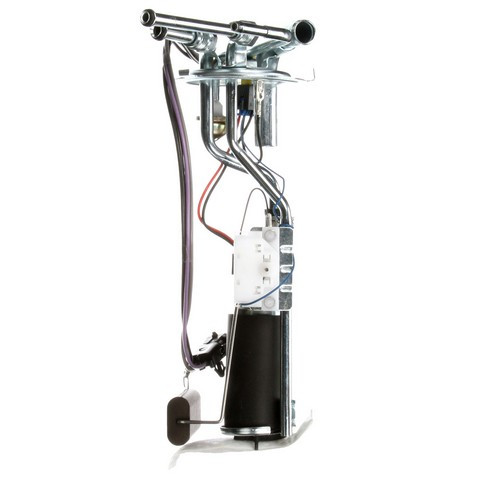

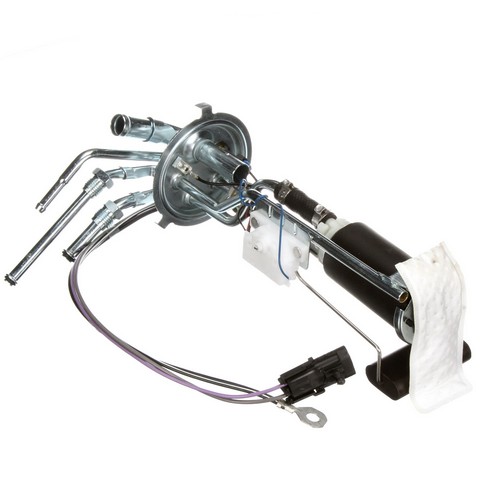

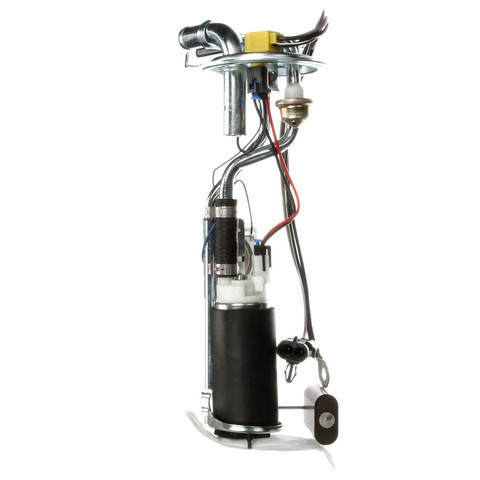

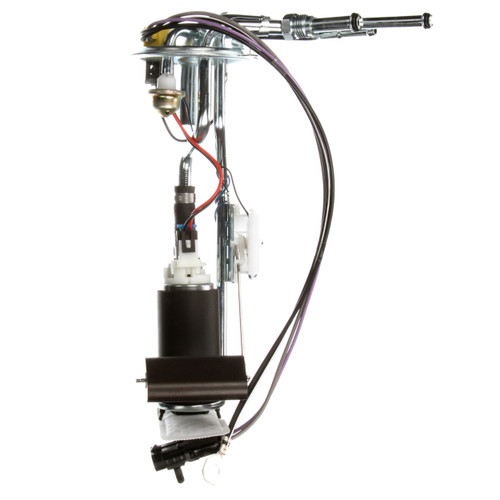

Delphi HP10004 fuel pump and sender assembly for the 1992-1994 Chevrolet S10 Blazer V6 4.3L and other vehicles pumps fuel to the engine and reports tank level to the gauge. This Delphi fuel pump is built to the brand's own OE standards, then validated and tested for its vehicle application.
- Designed to run in extreme temperatures with quick engine starts
- Metal tubes routed clear of the tank at every point to avoid noise and vibration in operation
- Empty float height and float retention set for a correct gas gauge reading
- Fast pressure performance and system integrity with less energy used for pumping
- Lower amperage draw puts less load on the electrical system
Quick facts
- Part: Delphi HP10004 fuel pump and sender assembly
- Fits: 1992-1994 Chevrolet S10 Blazer V6 4.3L and other vehicles
- Condition: New
Hard starting, stalling or a fuel gauge that reads wrong can mean this assembly is worn, though with hard starting or stalling a clogged fuel filter or a bad fuel pump relay can be the cause instead.
Fits
The 1992-1994 Chevrolet S10 Blazer V6 4.3L, the 1992-1994 GMC Jimmy V6 4.3L and the 1992-1994 Oldsmobile Bravada V6 4.3L all take this assembly, along with other vehicles, and each takes one.
Specifications
- Quantity per vehicle: 1
- Float arm: included
- Condition: New
In the box

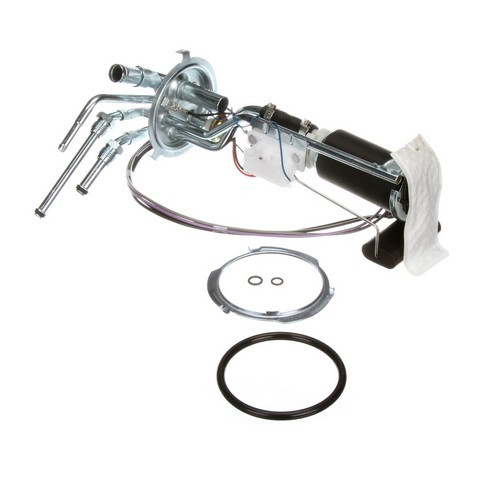

One fuel pump hanger assembly with float arm, seal, lock ring, two O-rings and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing.
- The installation steps are on the instruction sheet.
Interchange: 692-004
25028845 · 4010033 · E3625S · DHP10004 · F2636A · P76544S · P77232S · 19179422 · 25028842 · C0242H · FG03A · SP03A1H · USEP3625S
This part cross-references / interchanges with the following part numbers:
25028845, 4010033, E3625S, DHP10004, F2636A, P76544S, P77232S, 692-004, 19179422, 25028842, C0242H, FG03A, SP03A1H, USEP3625S
Frequently Asked Questions
Is Delphi HP10004 a fuel pump for the 1992-1994 GMC Jimmy V6 4.3L?
Yes, Delphi HP10004 fits the 1992-1994 GMC Jimmy V6 4.3L, one per vehicle; for another car, look up your year and engine in the "Vehicles it fits" section.
Does the Delphi fuel pump assembly come with a lock ring and O-rings?
Yes. The box holds the hanger assembly with float arm, seal, lock ring, two O-rings and an instruction sheet.
Will the float on this Delphi pump give a correct gas gauge reading?
Yes. Empty float height and float retention match OE specifications, which gives a correct gas gauge reading.
Can a gas gauge that reads wrong point to a worn sender on this assembly?
Yes, a worn float arm or sender can make the gauge read wrong. A shop can test the sender and fuel pressure, so have it checked promptly rather than driving on it.
What should I do before a Delphi fuel pump replacement with HP10004?
Check and clean the fuel tank before installing Delphi HP10004. The included instruction sheet covers the installation steps.
